ATX-Q670A
ATX-Q670A 3
ATX-Q670A - Image 3

ATX-Q670A

ATX with 12th/13th/14th Generation Intel® Core™ and Series 2 LGA1700 Socket Processors, TDP Max. 125W, DDR5 DRAM

  • 12th/13th/14th Generation Intel® Core™ and Series 2 (formerly Bartlett Lake) LGA1700 Socket Processors
  • DDR5 DRAM Support, 4000MHz, Max. 192GB
  • Four Independent Display: HDMI 2.0 x 2, DP x 2, VGA x 1
  • Dual Intel® GbE (Optional: additional LAN 3 I226-LM x 1)
  • M.2 2280/2242 M-Key x 2, M.2 3042/3052 B-Key x 1 + Micro SIM Slot x 1, Mini PCIe x 1 + Micro SIM Slot x 1
  • USB 3.2 Gen 2 x 2, USB 3.2 Gen 1 x 4, USB 2.0 x 3 (Optional: USB Type-C x 1, USB 3.2 Gen 2 x 3)
  • SATA x 8
  • Switchable USB Power feature for USB device reset
  • Bootable feature in rear USB Port for enhanced security
  • Onboard TPM 2.0
Cikkszám: AAEON ATX-Q670A Kategóriák: , , , Címkék: , , , Márka:

Leírás

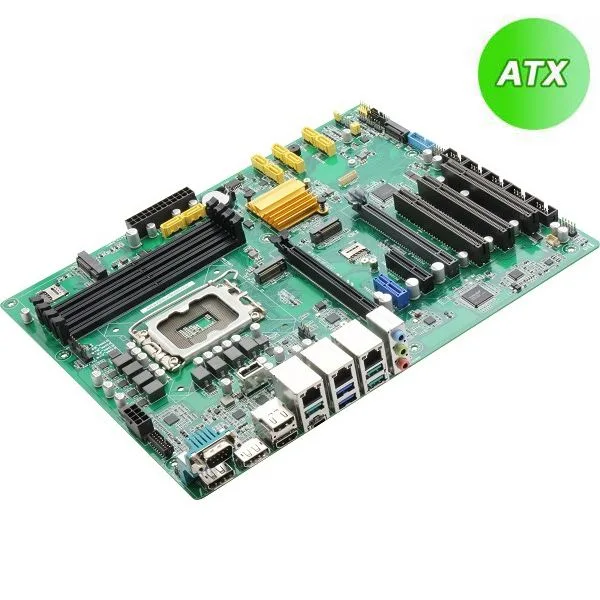

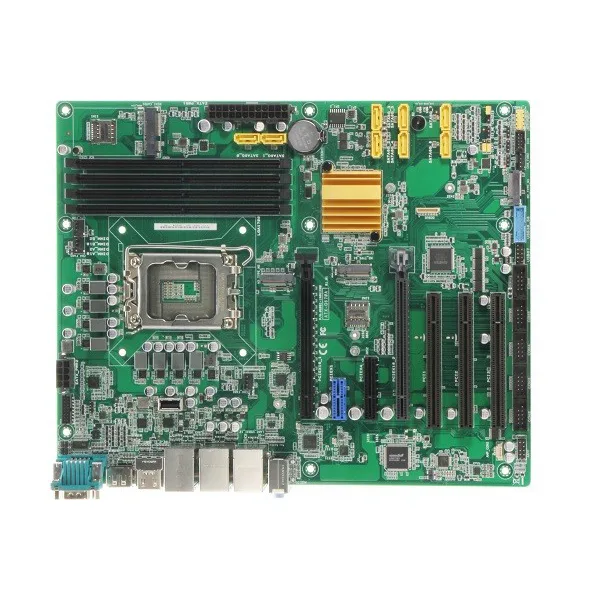

ATX-Q670A

ATX with 12th/13th/14th Generation Intel® Core™ and Series 2 LGA1700 Socket Processors, TDP Max. 125W, DDR5 DRAM
ATX-Q670A zk

As its newest industrial motherboard, the ATX-Q670A demonstrates AAEON’s commitment to innovation. Powered by 12th/13th/14th Generation Intel® Core™ and Series 2 LGA1700 socket processors, the ATX-Q670A incorporates high-performance computing with AAEON’s precision design to introduce generational improvements in system memory, expansion, and security. Supporting four dual-channel DDR5 DIMMs, alongside two PCIe x16 expansion ports and a bootable USB port feature, the ATX-Q670A is industry-leading in both performance and market potential, enabling applications across the healthcare, industrial automation, and IoT spheres.

img_260417081906_EWSt5Z

Double the Speed and Storage with Next-Gen DDR5 Efficiency

The ATX-Q670A leads the market with DDR5 support, delivering 50% more bandwidth and 20% lower power consumption. With dual M.2 M-Keys and eight SATA III ports—double the industry standard—it provides the ultimate high-speed foundation for data-intensive IoT and smart industry applications.

Industry-Leading Expansion for Versatile Solutions

The ATX-Q670A offers superior flexibility with two PCIe x16, PCIe x4, PCIe x1, and three PCI slots. Supporting dual graphics cards and four independent 4K@60Hz displays, it excels in video capture and AI computing. Powered by 12th/13th/14th Generation Intel® Core™ and Series 2 LGA1700 socket processors, this wealth of expansion and I/O provides the precision and power required for advanced industrial automation.
img_260417083733_77MfIf
img_260417085900_zSXIS7

Advanced System Security & Data Integrity

The ATX-Q670A features robust security to manage high-volume data safely. A key highlight is the bootable USB protection, which prevents unauthorized system access via its rich I/O—including USB Type-C and multiple USB 3.2 Gen 2/1 ports. These stringent security measures ensure that sensitive applications, such as healthcare and financial terminals, remain protected without compromising on high-speed connectivity.

További információkért és ajánlatért az AAEON ATX-Q670A terékünkről keressen minket bizalommal! Ipari jelőléstechnikai termékeinkért tekintse meg testvéroldalunkat! Tartós, megbítható és extrém körülmények közt is stabil teljesítményt nyújtó ipari eszközök széles választékával várjuk
