AXIOMTEK AIE800-904-FL-DC Rugged IP67-rated Fanless Edge AI System with NVIDIA® Jetson Xavier™ NX, HDMI, 1 GbE PoE, 2 USB, and 9 to 36 VDC.

• IP67-rated design for outdoor edge AI applications
• NVIDIA® Jetson Xavier™ NX with 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
• High AI computing performance for GPU accelerated processing
• -30°C to +50°C operating temperature range
• 9 to 36 VDC wide range power input
• Features M12 lockable I/Os
• 1 IEEE 802.3af Gigabit PoE (15W)

Introduction

Unlock More Outdoor AI Opportunities

Based on the NVIDIA® Jetson™ NX platform, AIE800-904-FL-DC features a powerful 6-core NVIDIA Carmel ARM® v8.2 (64-bit) processor delivering up to 21 TOPS of AI performance and integrates an advanced 384-core NVIDIA Volta™ GPU with 48 Tensor Cores. Featuring industrial-grade anti-vibration for up to 3Grms. A wide operating temperature range of -30°C to 50°C, and wide voltage DC input, plus multiple M12-type I/O interfaces. The AIE800-904-FL-DC is suitable for severe applications in outdoor environments.

Rugged & Reliable Design

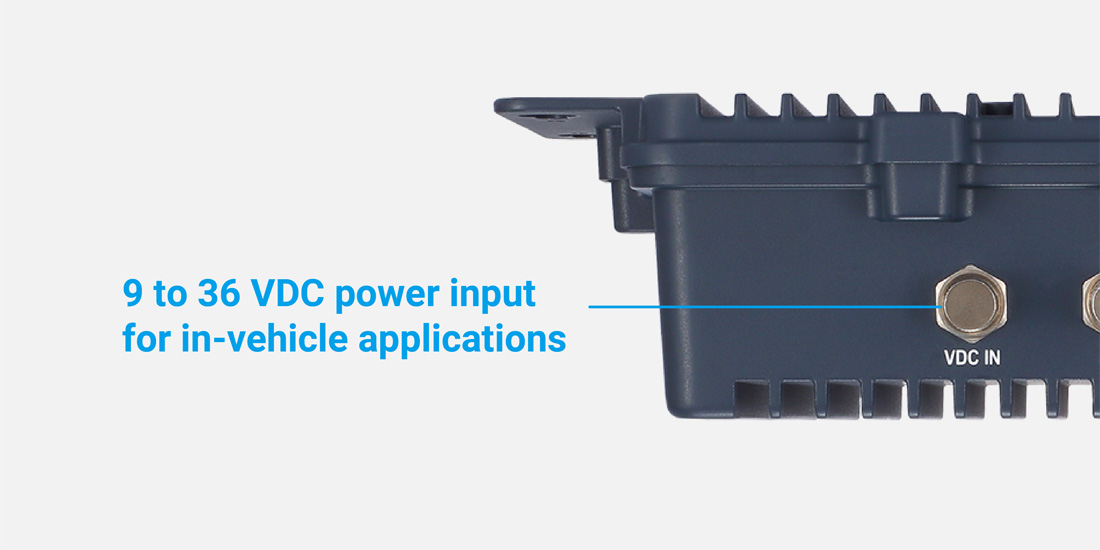

Referring to outdoor use, the AIE800-904-FL-DC supports 9 to 36 VDC wide range power input which expands the vertical markets and gets with customers’ diverse needs. In addition, it features industrial-grade anti-vibration for up to 3Grms, a wide operating temperature range of -30°C to 50°C, and multiple M12-type I/O interfaces.

M12 Connectors

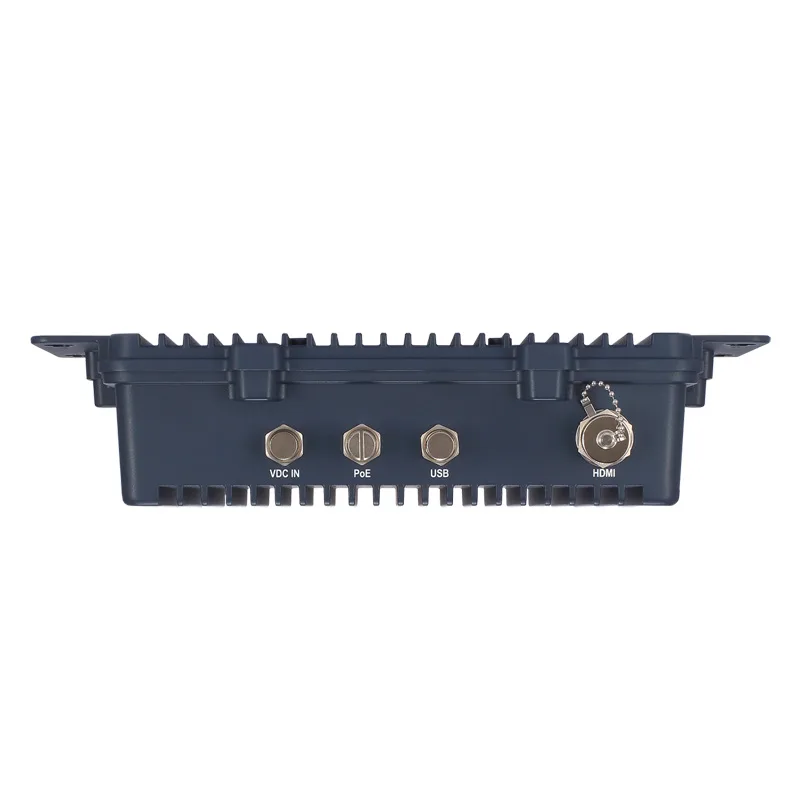

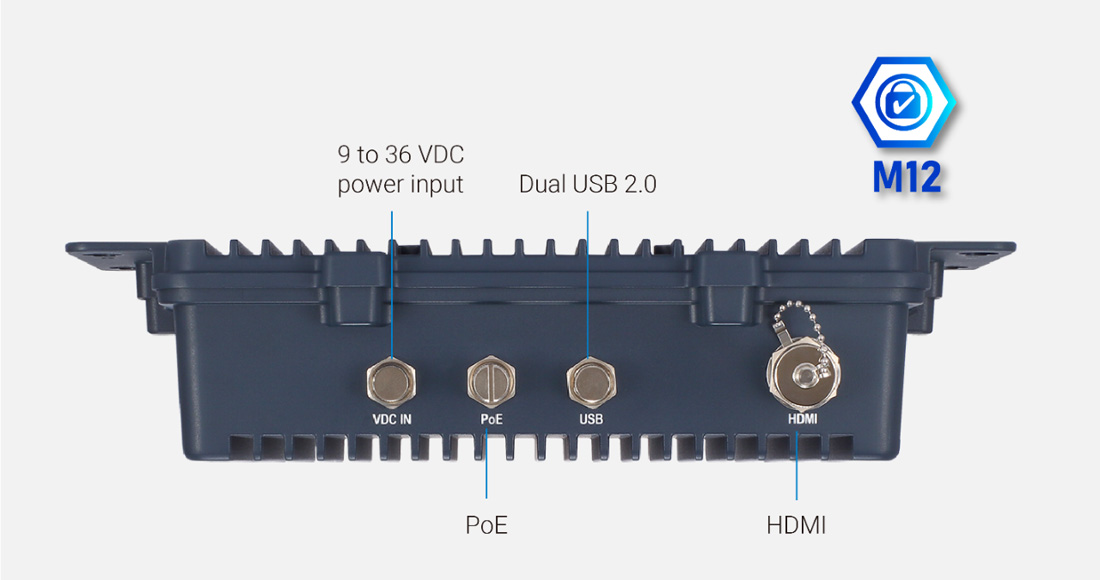

The robust AIE800-904-FL-DC is equipped with M12-type I/O interfaces, including one M12 dual USB 2.0 port, one M12 Gigabit PoE port, one M12 DC power input, and one C3 HDMI port supporting full HD.

Great Expandability

The rugged AIE800-904-FL-DC presents great expansion capabilities with one full-size PCI Express Mini Card slot (USB + PCI Express signal) as well as one SIM Card slot for 4G/LTE/GPRS connections.
