Introduction

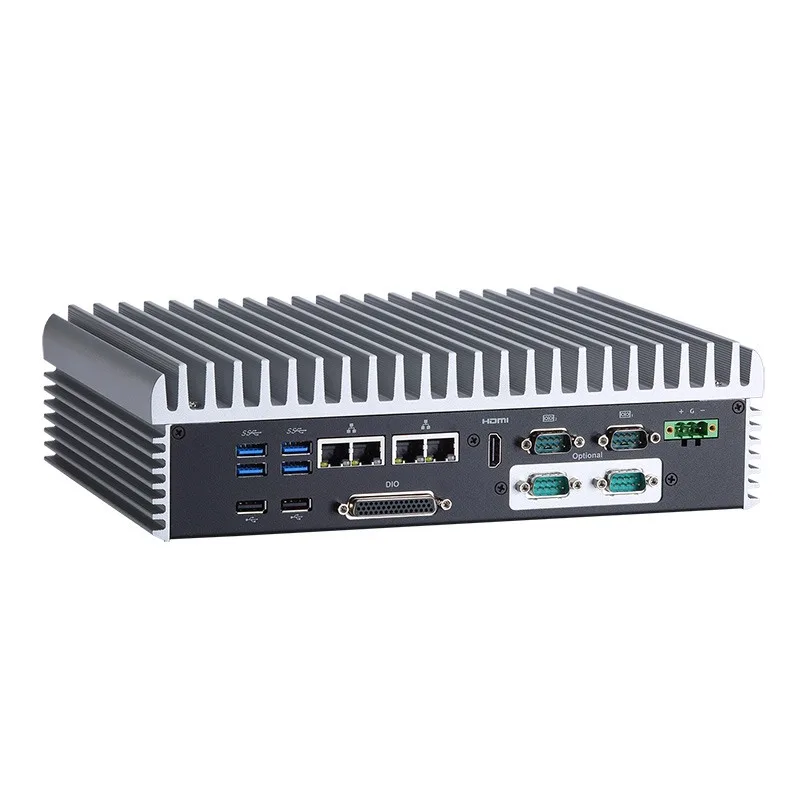

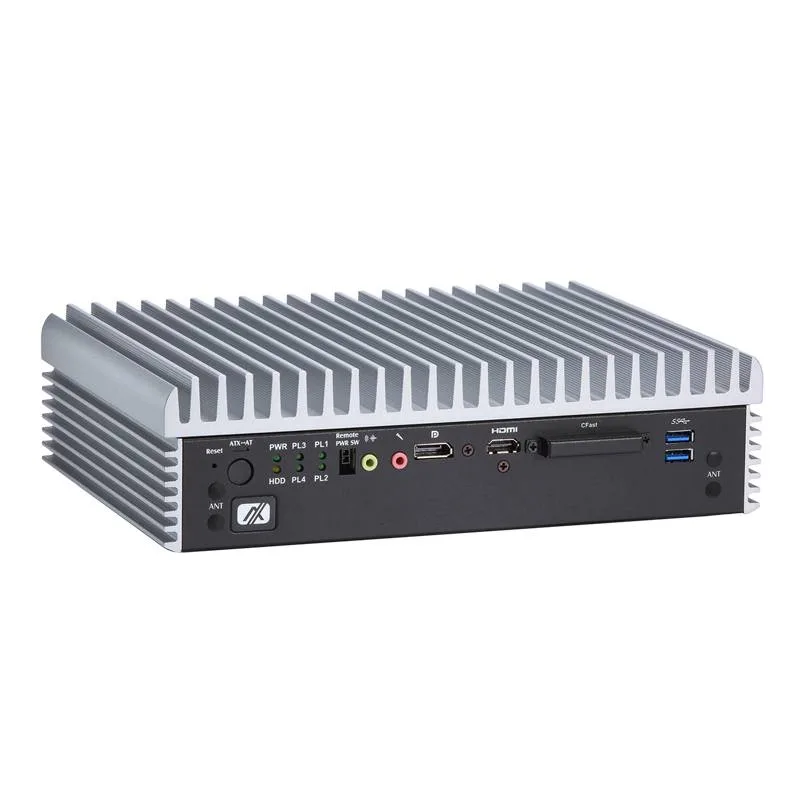

eBOX670-891-FL supports the 7th/6th generation Intel® Core™ i7/i5/i3 and Celeron® processors with flexible I/O configurations. This outstanding embedded box PC is equipped with dual DDR4-2133 SO-DIMM slots with system memory up to 32 GB. eBOX670-891-FL provides high flexibility with reserved I/O module space on the rear side. The embedded system integrator can expand the system quickly and easily by installing suitable I/O modules. The fanless embedded box computer features wireless communication capabilities with two internal PCI Express Mini Card slots and one SIM card slot. Four Gigabit Ethernet ports are for customers who need mass data transmission or LAN port teaming functions for each virtual machine. For storage needs, it is equipped with one easy-access CFast™ socket, one mSATA interface, and dual 2.5” SATA hard drive bays with RAID 0&1 support.
