Letölthető adatlapLeírás

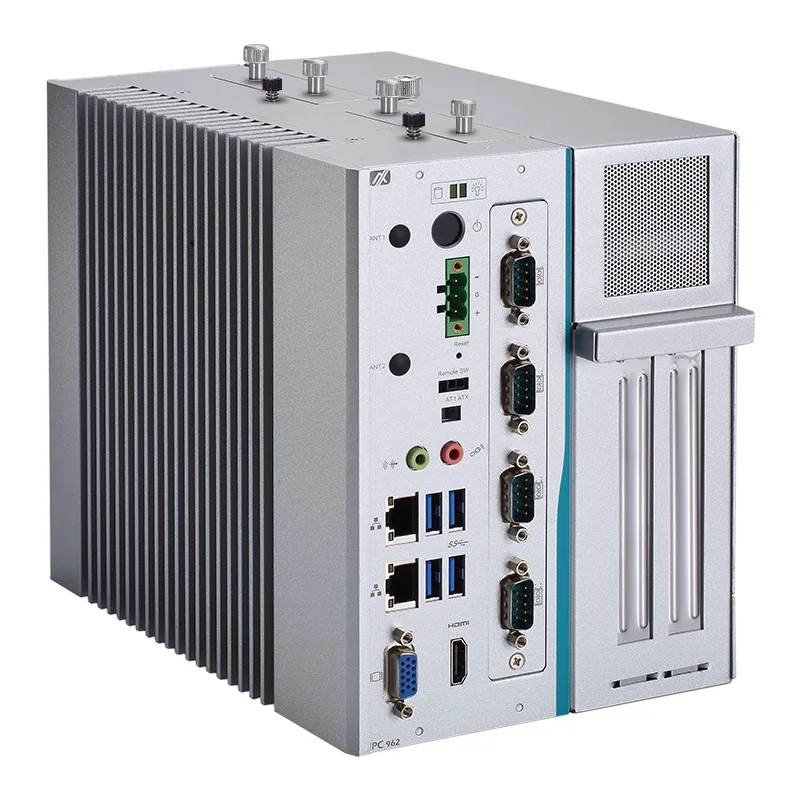

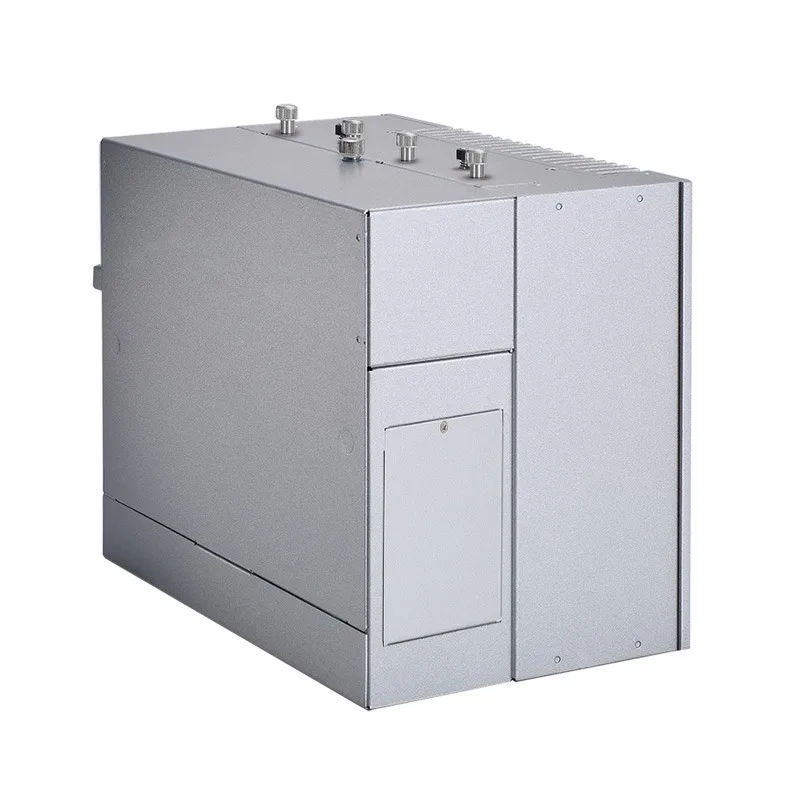

AXIOMTEK IPC962-512-FL 2-slot Fanless Industrial System
- LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor, up to 65W (codename: Kaby Lake/Skylake)
- Intel® Q170 chipset
- Supports 2 expansion slots
- Power input: 24 VDC (uMin=19V/uMax=30V)
- Compact & front I/O design
- -10°C to +60°C operating temperature range
- Supports ECM BIOS setting
- Supports 2 swappable 2.5" HDD & RAID 0,1
- Supports WLAN module & antenna (optional)
- Supports TPM 2.0
Introduction
The IPC962-512-FL is powered by the 7th/6th generation Intel® Core™ and Celeron® processors (codename: Kaby Lake/Skylake) with the Intel® Q170 chipset. It is equipped with dual DDR4-2133 SO-DIMM slots with up to 32GB system memory. The ultra-compact industrial computer supports two swappable 2.5" HDDs; moreover, it offers flexible expansion options with one I/O module slot and two PCI/PCIe slots. It also has a wide operating temperature range of -10°C to +60°C and a 24VDC (uMin=19V / uMax=30V) power input for severe environments. According to the features above, this rugged industrial PC is a great choice for a wide variety of Industrial IoT applications including automatic optical inspection, digital signage, motion control, and factory automation.
További információkért és ajánlatért az IPC962-512-FL terékünkről keressen minket bizalommal! Ipari jelőléstechnikai termékeinkért tekintse meg testvéroldalunkat! Tartós, megbítható és extrém körülmények közt is stabil teljesítményt nyújtó ipari eszközök széles választékával várjuk
