Leírás

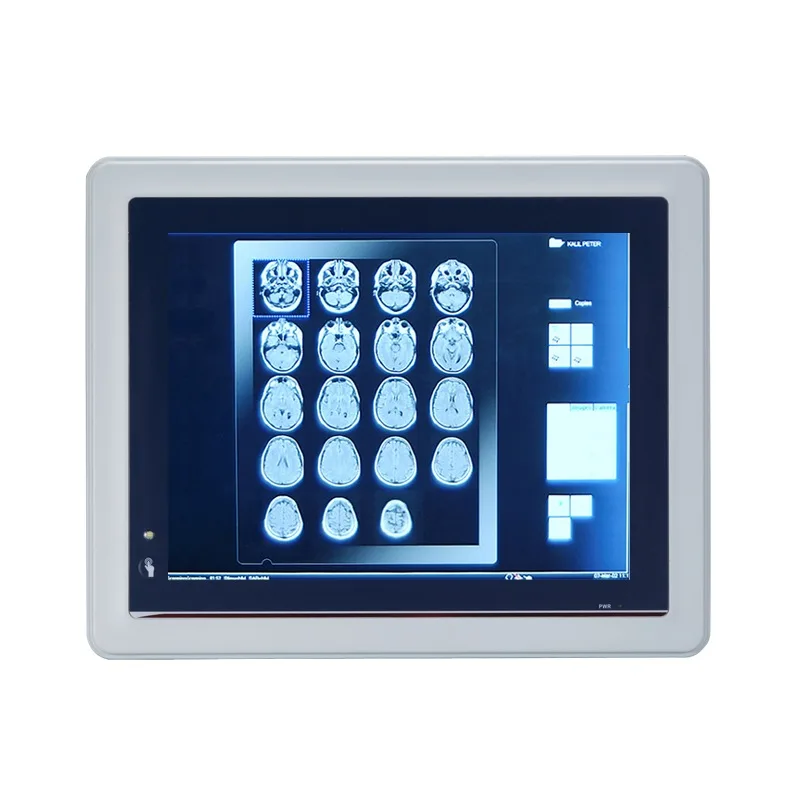

AXIOMTEK MPC152-845 Medical Panel PC

• 15" XGA TFT LCD display with LED backlight
• Fanless design with Intel® Celeron® processor N3060
• 2 GbE LANs, 4 USB and 2 COM
• Plastic and IP65-rated front bezel
• Supports RFID (optional)
• External AT/ATX mode selection switch
• Easy access storage design
• Supports panel mount, wall mount, VESA arm and desktop stand
• Adjustable RS-232/422/485 setting via BIOS
• CE (EN 60601-1) and FCC Part 18; EN 60601-1-2 (ESD contact 8kV, air 15kV)

Introduction

The MPC152-845 is a 15" fanless medical touch panel computer. In response to market demand, this medical panel computer is a cost effective solution. It adopts a modern, super sleek and fanless design and is equipped with a 15" TFT LCD. It is powered by the Intel® Celeron® processor N3060 dual core up to 2.48 GHz. For wireless network connection, the MPC152-845 offers 2 PCI Express Mini Card slots. By just plugging in the mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments. Besides, it provides two types of power input: DC power with terminal block connector and AC power adapter with screw type connector.

ESuper Slim & Ultra Lightweight Design

With a thickness of 54.6 mm and weight of 3.2 kg, the MPC152-845 is designed for use in space-constrained environments.

Certifications

This 15-inch medical panel platform complies with EN60601-1 ED3.1 CE, FCC Class B certifications to ensure medical operation safety.

Aluminum Back Chassis with Excellent Thermal Solution

With Axiomtek's patent for plastic plus aluminum mechanism design, the MPC152-845 can dissipate the heat easily and keep the system operation stable.

További információkért és ajánlatért az MPC152-845 terékünkről keressen minket bizalommal! Ipari jelőléstechnikai termékeinkért tekintse meg testvéroldalunkat! Tartós, megbítható és extrém körülmények közt is stabil teljesítményt nyújtó ipari eszközök széles választékával várjuk
