Introduction

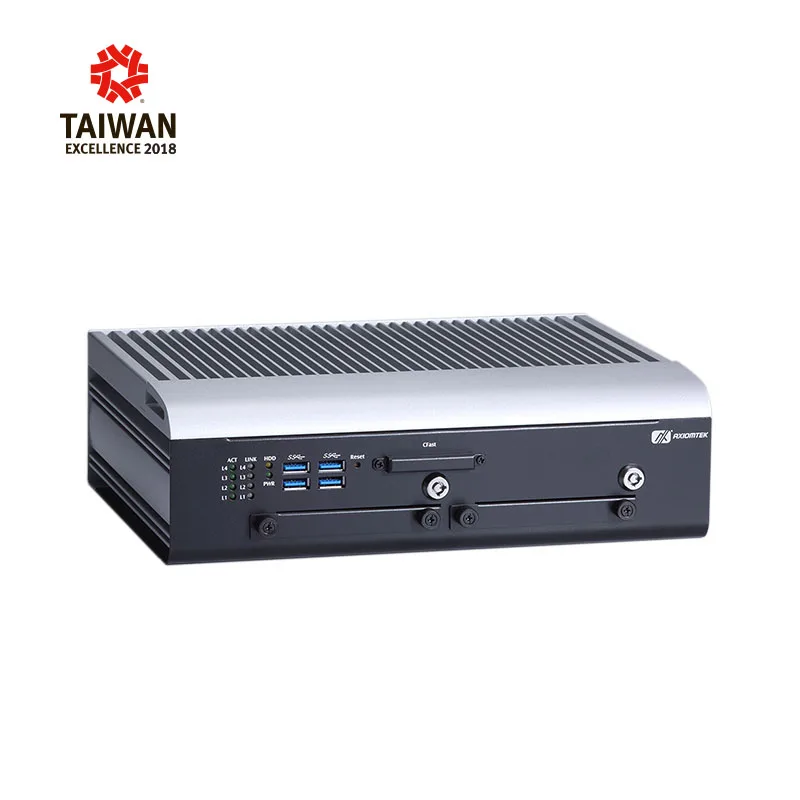

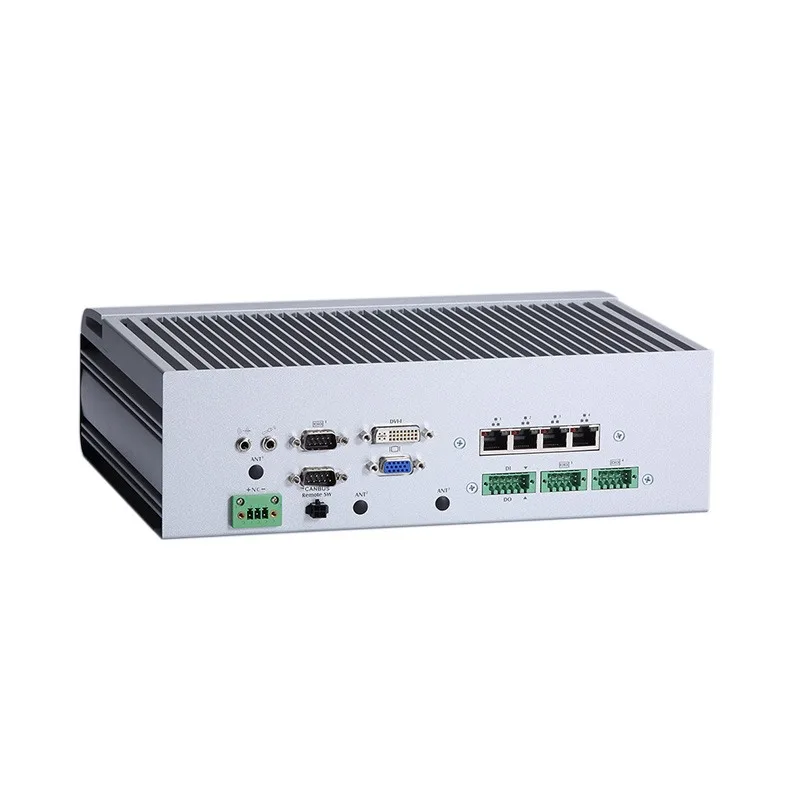

The tBOX324-894-FL is a multi-functional fanless embedded computer certified with EN 50155, E-Mark, DNV 2.4, EN 45545-2, and IEC 60945 for use in a variety of transportation applications. Thanks to the onboard 7th generation Intel® Core™ processors, the tBOX324-894-FL provides powerful computing performance in a compact size within which a modular I/O design has enhanced the operational efficiency and flexibility. The transportation box PC is equipped with two DDR4-1866/2133 SO-DIMM slots supporting up to 32GB of system memory. To suit the need for extensive storage, it is equipped with two swappable 2.5” SATA3 HDDs and one CFast™ slot. The application-ready tBOX324-894-FL is an outstanding embedded box PC for transportation-related applications such as train management, truck fleet management, transportation controller, data transfer, security surveillance, and onboard infotainment controller in the vehicle, railway, and marine markets.
