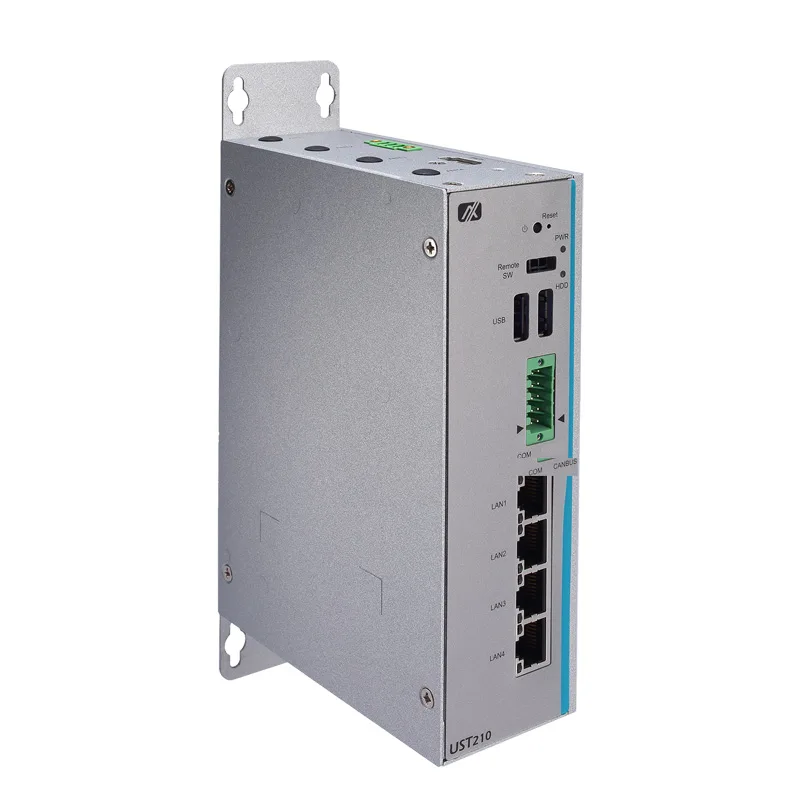

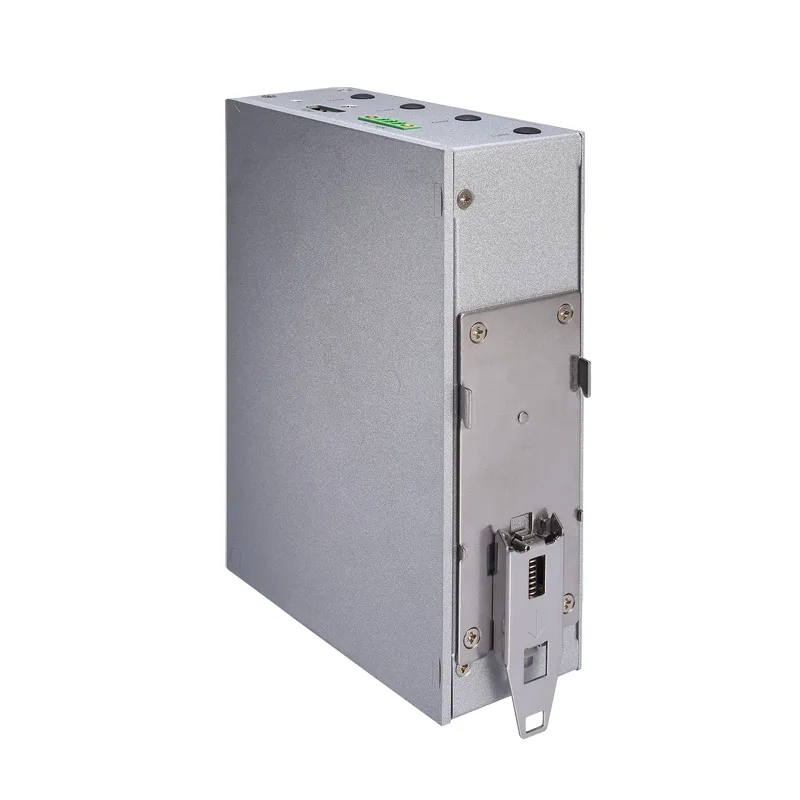

AXIOMTEK UST210-83K-FL Robust and Compact DIN-rail Fanless Embedded System with Intel Atom® x5-E3940 Processor for In-Vehicle Gateway Applications..
- CE, FCC and E-Mark certified
- Intel Atom® x5-E3940 processor
- Extreme cost-effective with fanless and cableless design
- Wide operating temperature range from -40°C to +70°C
- Supports typical 12V and 24V DC in-vehicle power input

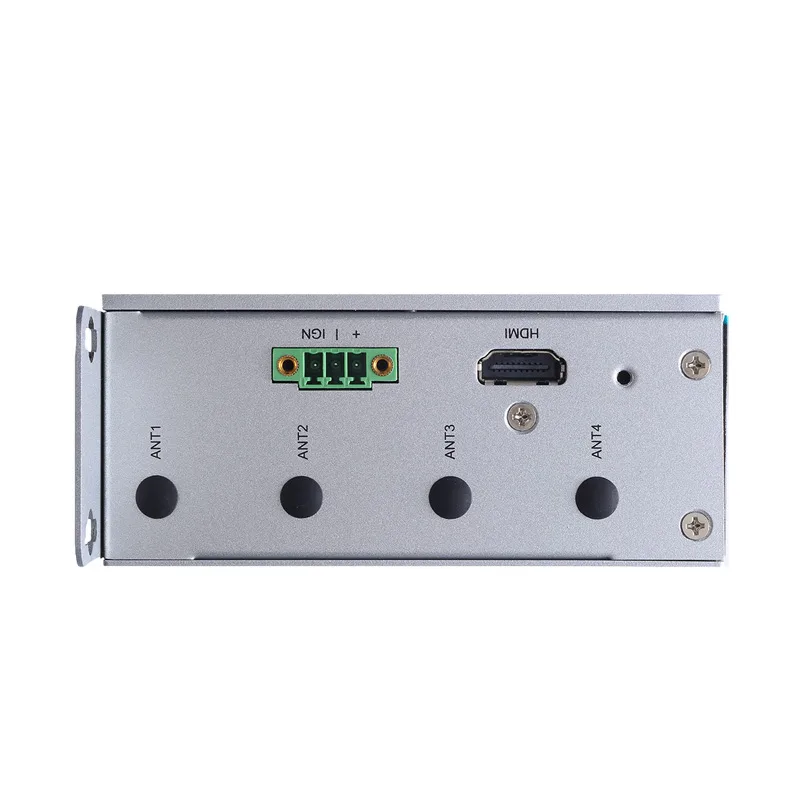

- Smart Ignition for power on/off schedule, vehicle battery protection, and different power modes
- Supports COM, CAN, USB, and GbE PoE LAN

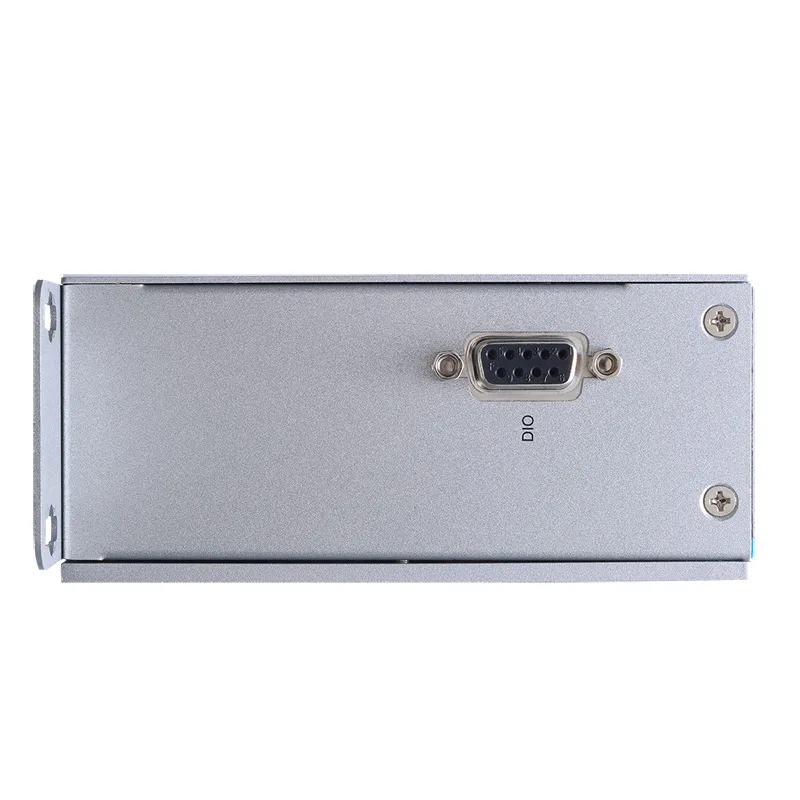

- 8-bit programmable DIO for IoT gateway applications
Introduction
UST210-83K-FL, its new compact DIN-rail fanless in-vehicle box PC powered by the Intel Atom® x5-E3940 processor.UST210-83K-FL features a Smart Ignition function for power on/off scheduling to protect vehicle battery from unstable voltage. Furthermore, the in-vehicle box PC is E-Mark certified and can endure vibration of up to 3 Grms, ensuring stable and reliable operation under challenging environmental conditions. Ruggedized in-vehicle embedded system adopts front-accessible I/O ports for easy access and maintenance.
In addition, the well-developed in-vehicle box PC supports 9V to 36V DC wide voltage input. Flexible IoT gateway is aimed at all kinds of in-vehicle applications, e.g., shuttle buses, police cars, ambulances or heavy-duty trucks. The UST210-83K-FL can operate under a wide temperature range from -40 to +70°C and it passes MIL-STD-810G shock and vibration resistance certifications to ensure proper operations when traveling on poor road conditions. The UST210-83K-FL is specially designed for in-vehicle applications such as vehicle controls, fleet monitoring, management system, and in-vehicle edge computing.
