BOXER-6711-ADN

BOXER-6711-ADN

DIN Rail Mount Embedded BOX PC with Intel Atom® x7211E/Intel® Processor N-Series Processors

  • Designed for Embedded Automation Controller
  • Support DIN Rail Mount
  • Intel Atom® x7211E/Intel® Processor N-Series
  • DDR5 4800 MT/s SO-DIMM slot
  • Onboard TPM 2.0
  • Wide Range 9~36V DC input
  • Wide Operating Temperature -20~60°C
Cikkszám: AAEON BOXER-6711-ADN Kategóriák: , , , Címkék: , , , Márka:

Leírás

BOXER-6711-ADN

DIN Rail Mount Embedded BOX PC with Intel Atom® x7211E/Intel® Processor N-Series Processors
BOXER-6711-ADN lcd

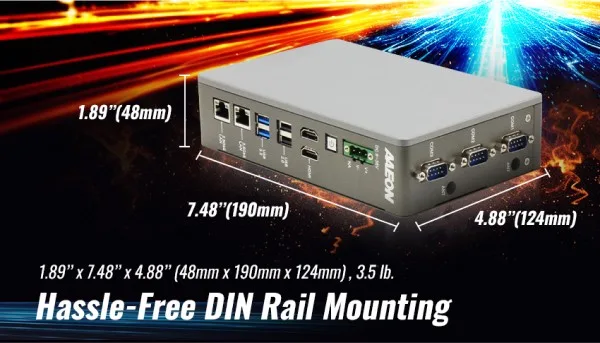

Hassle-Free DIN Rail Mounting

Integrating automation solutions can come with many challenges, particularly in environments with existing infrastructure that may, due to hardware restrictions, require additional renovation to accommodate new equipment. However, with its slim, vertical form factor measuring just 1.89’’ x 7.48’’ x 4.88’’ (48mm x 190mm x 124mm) and weighing just 3.5 lb., the BOXER-6711 ADN is easily deployed via DIN rail with just three screws, making it incredibly suitable for deployment anywhere, without hassle.
When it comes to automation, solutions don’t get more versatile than the new BOXER-6711-ADN. The compact embedded controller is flexibly deployed via DIN rail, and contains a wealth of high-speed interfaces strategically placed for optimum efficiency and longevity. The ultimate automation control solution, the BOXER-6711-ADN is also exceptionally rugged, with broad temperature and power input ranges, along with advanced power protection features to guarantee continual operation in even the toughest settings.
tio_240215_l511ba

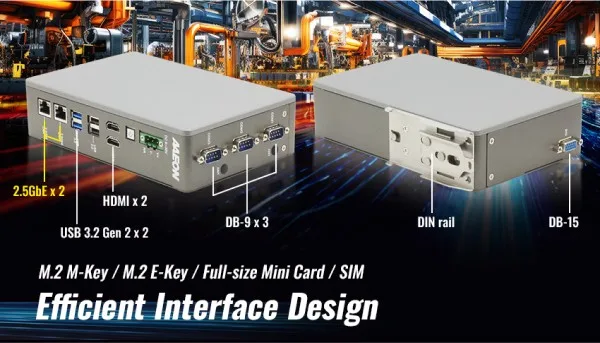

Efficient Interface Design

Equipped with all of the necessary features that machine maker applications need, the BOXER-6711-ADN is also designed to maintain connective stability via an industrial I/O layout. Built to be vertically installed, the BOXER-6711 hosts three DB-9 ports (RS-232/422/485) along its top ridge, with a DB-15 port on its bottom ridge for DIO function. The PC’s side panel contains dual 2.5GbE LAN, dual USB 3.2 Gen 2, and dual HDMI to facilitate interaction with other devices, PLCs, or SCADA systems. To accommodate wireless communication and PCIe expansion modules, the system also offers M.2 M and E-Key slots, along with a full-size Mini Card and SIM slot.

tio_240215_h26u2a

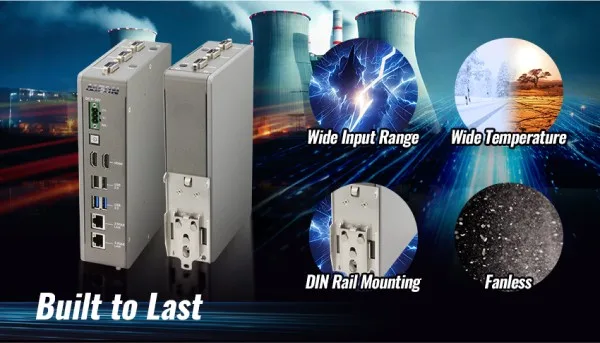

Built to Last

The 6711-ADN stands out for its exceptional mechanical robustness, capable of reliable operation across a broad temperature spectrum of -20°C to 60°C, allowing users to utilize multiple storage, memory and wireless communication add-ons in demanding environments. Ensuring the integrity of crucial data, the system incorporates a broad 9V ~ 36V voltage input range with advanced safeguards against over/under-voltage currents and short-circuits, along with its fanless design, which protects against dust.

További információkért és ajánlatért a BOXER-6711-ADN terékünkről keressen minket bizalommal! Ipari jelőléstechnikai termékeinkért tekintse meg testvéroldalunkat! Tartós, megbítható és extrém körülmények közt is stabil teljesítményt nyújtó ipari eszközök széles választékával várjuk
