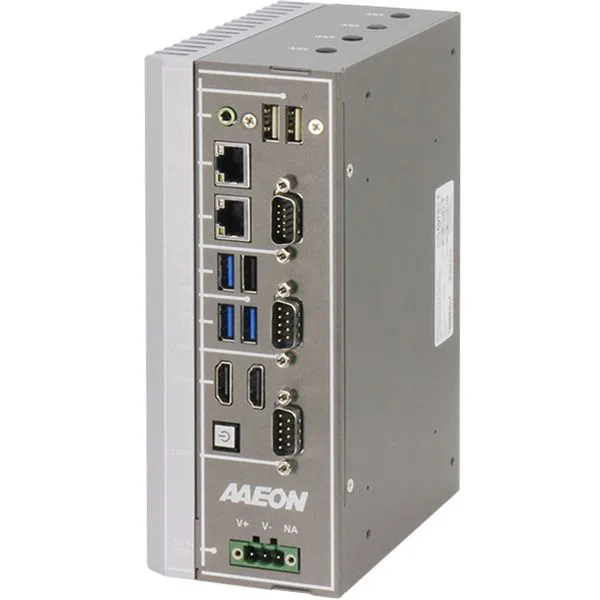

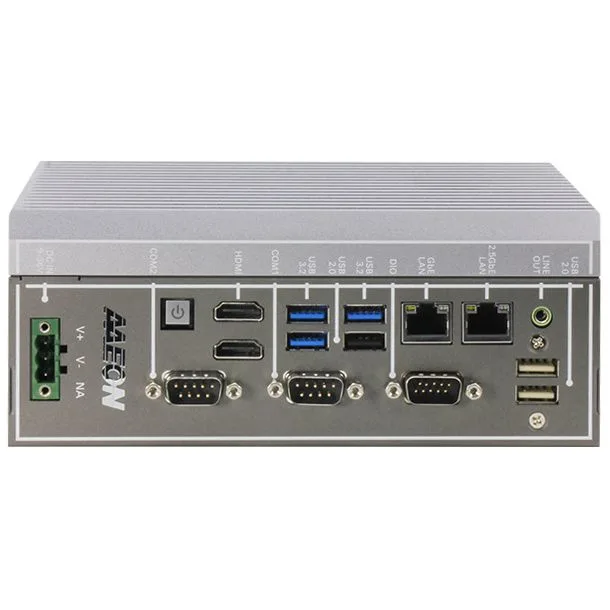

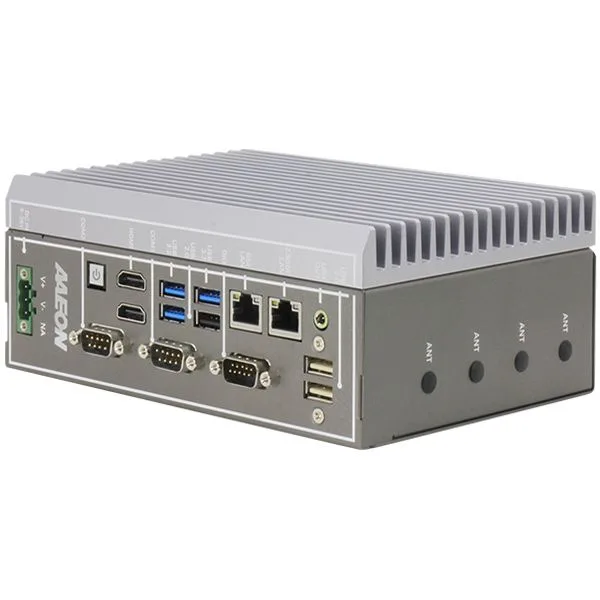

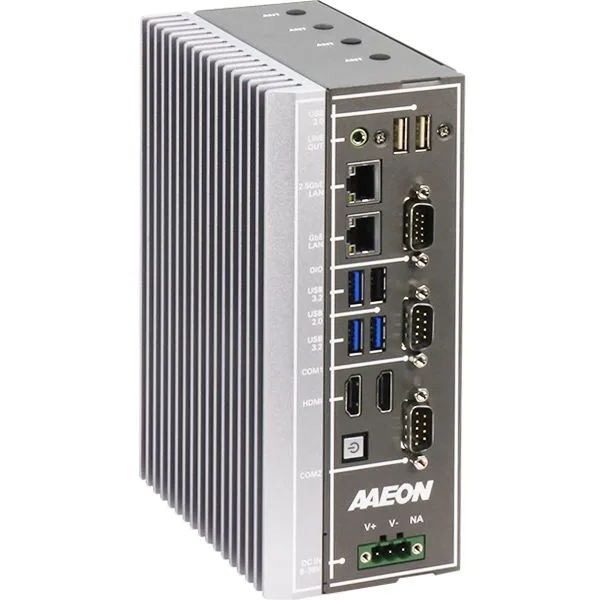

BOXER-6751-ADP

DIN Rail Fanless Embedded BOX PC with 12th Generation Intel® Core™ Processors

  • 12th Gen Intel® Core™ Processors
  • DDR4 SODIMM, Max. 32GB
  • USB 3.2 Gen 2 x 3 + USB 2.0 x 3
  • 2.5GbE x 1 (Intel® I226-LM) + GbE x 1 (Intel® I219-LM)
  • RS-232/422/485 x 2
  • HDMI x 2 Dual Display Output
  • 8-bit Digital Input and Output x 1
  • M.2 3052 B-Key for 5G
  • Onboard TPM 2.0
  • Wide 9 ~ 36V DC Input Range With Power Protection
  • Wide -20°C ~ 60°C Temperature Range
  • DIN Rail Mount Design
Cikkszám: AAEON BOXER-6751-ADP Kategóriák: , , , Címkék: , , , Márka:

Leírás

BOXER-6751-ADP

DIN Rail Fanless Embedded BOX PC with 12th Generation Intel® Core™ Processors
The BOXER-6751-ADP is designed to make Industry 4.0 integration easy. With enhanced durability through a distinct design, it is purpose-built to add value to smart factory and offshore energy applications. A small, mountable chassis houses a dense interface selection powered by 12th Gen Intel® Core™ Processors alongside an array of accessible expansion slots. This sophistication is aided by rugged features such as wide voltage input and temperature ranges to guarantee operation in the harshest of settings.

SYSTEM

CPU Intel® Core™ i7-1265UE
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
Chipset Intel® SoC
System Memory DDR4 SODIMM x 1, up to 32GB
Display Interface HDMI 1.4b (Type-A) x 2
Storage Device 2.5” SATA III Drive Bay x 1
M.2 2280 M-Key x 1 (PCIe [x4])
Ethernet RJ-45 x 1 for Intel® I226-LM, 2.5GbE
RJ-45 x 1 for Intel® I219-LM, GbE
I/O USB 3.2 Gen 2 (Type-A) x 3
USB 2.0 (Type-A) x 3
DB-9 x 2 for RS-232/422/485
DB-15 x 1 for DIO 8-bit
HDMI 1.4b (Type-A) x 2
Audio x 1 for Line-Out
Power Button x 1
3-pin Terminal Block for DC-in x 1
Antenna Opening x 4
Expansion M.2 2230 E-Key x 1 (Wi-Fi/BT)
M.2 3052 B-Key w/ SIM x 1 (LTE/5G)
M.2 2280 M-Key x 1 (NVMe)
Indicator Power Button with LED
OS support Windows® 10 IoT Ent LTSC
Windows® 11 PRO
Ubuntu 22.04

POWER SUPPLY

Power Requirement DC 9 - 36V with 3-pin terminal block

MECHANICAL

Mounting DIN Rail Mount
Wallmount (Mounting kit is optional)
Dimensions (W x H x D) 2.93” x 7.32” x 5.0” (74.3mm x 186mm x 127mm)
Gross Weight 5.3 lb (2.41 Kg)
Net Weight 3.9 lb (1.77 Kg)

ENVIRONMENTAL

Operating Temperature -4°F ~140°F (-20°C ~ 60°C), IEC68-2 with 0.5 m/s AirFlow
Storage Temperature -40˚F ~ 176˚F (-40˚C ~ 80˚C)
Storage Humidity 5 ~ 95% @ 40˚C, non-condensing
Anti-Vibration With SSD: Random, 3 Grms, 5~500Hz
BOXER-6751-ADP Anti-Shock —
BOXER-6751-ADP Certification CE/FCC class A
