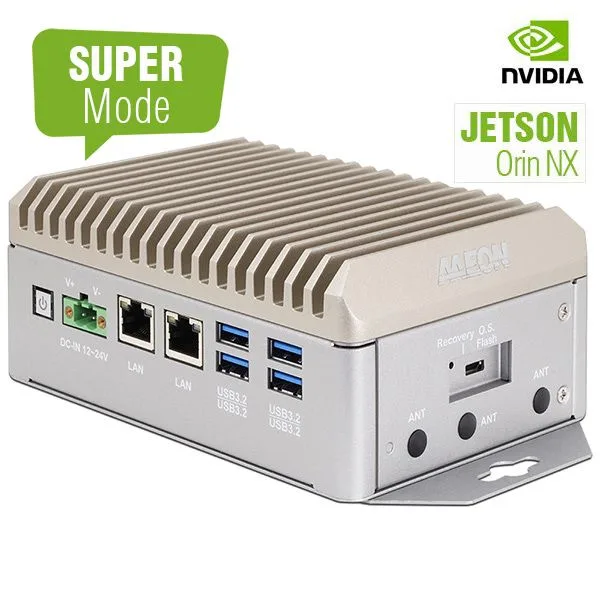

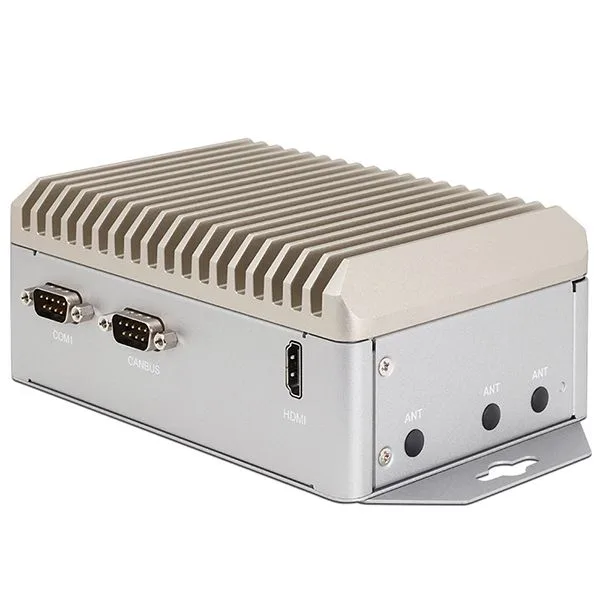

BOXER-8652AI-PLUS
AI@Edge Compact Fanless Embedded AI System with NVIDIA® Jetson Orin™ NX
BOXER-8652AI-PLUS SYSTEM
AI Accelerator
NVIDIA® Jetson Orin™ NX
CPU
Orin NX 8GB: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Orin NX 16GB: 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Orin NX 16GB: 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
System Memory
Orin NX 8GB: 8GB LPDDR5
Orin NX 16GB: 16GB LPDDR5
Orin NX 16GB: 16GB LPDDR5
Storage Device
M.2 2280 M-Key (pre-populated with 128GB NVMe)
Display Interface
HDMI 1.4b x 1
Ethernet
RJ-45 x 2 for 10/100/1000 Base-T (OOB Management support x
1)
I/O
USB 3.2 Gen 2 (Type-A) x 4
Micro USB x 1 for OS Flash
DB-9 x 1 for CANbus
DB-9 x 1 for RS-232/422/485
Power ON/OFF switch x 1
Recovery button x 1
Antenna Hole x 6
MIPI connector x 2
AT/ATX jumper x 1 (Default: ATX)
UART x 1 for debug
5V FAN connector x 1
Micro USB x 1 for OS Flash
DB-9 x 1 for CANbus
DB-9 x 1 for RS-232/422/485
Power ON/OFF switch x 1
Recovery button x 1
Antenna Hole x 6
MIPI connector x 2
AT/ATX jumper x 1 (Default: ATX)
UART x 1 for debug
5V FAN connector x 1
Expansion
M.2 3042/3052 B Key x 1 (LTE/5G/M.2 2242 B+M Key storage)
M.2 2230 E Key x 1 (Wifi/BT)
M.2 2280 M Key x 1 (NVMe 128GB built-in)
NANO SIM x 1
TPM x 1 (onboard)
Box Header x 1 for OOB
M.2 2230 E Key x 1 (Wifi/BT)
M.2 2280 M Key x 1 (NVMe 128GB built-in)
NANO SIM x 1
TPM x 1 (onboard)
Box Header x 1 for OOB
Indicator
Power LED x 1
System LED x 1
System LED x 1
OS support
Linux (NVIDIA JetPack™ 6.2.1 and above)
BOXER-8652AI-PLUS POWER SUPPLY
Power Requirement
2-pin Phoenix Connector x 1 for 12V - 24V DC power input
MECHANICAL
Mounting
Wallmount
Dimension
7.48" × 5.35" × 2.95" (190mm x 136mm x 75mm)
Gross Weight
4.37 lb (1.98kg)
Net Weight
3.04 lb (1.38kg)
BOXER-8652AI-PLUS ENVIRONMENTAL
Operating Temperature
-13°F - 149°F (-25°C ~ 65°C), according to IEC60068-2 with 0.7
m/s Airflow
Storage Temperature
104°F ~ 185°F (40°C ~ 85°C), non-operation
Storage Humidity
5%~ 95% @ 40°C, non-condensing
Anti-Vibration
3.5G / 5~500Hz / operating
Anti-Shock
50G peak acceleration
Certification
CE/FCC class A
