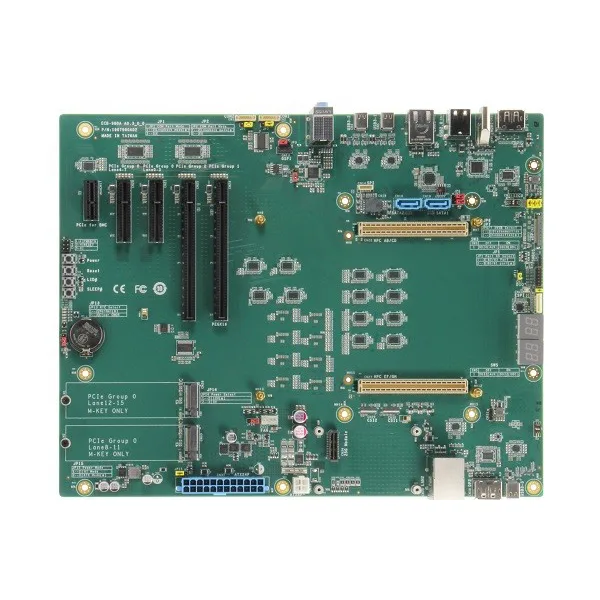

ECB-980A
COM HPC Client Carrier board for Size A/B/C
ECB-980A SYSTEM
Form Factor
COM HPC Client Size A/B/C
COM Express Connector
x 2 (J1 and J2)
I/O Chipset
—
Front Panel Control
10-pin Header (2x5P)
Ethernet
2.5 GbE x 1
10 GbE x 1
10 GbE x 1
Expansion Interface
PCIe [x4] x 2 (Group 0, Lane 0 ~ 7)
PCIe [x16] x 2
(one PCIe [x16] only supports PCIe [x4])
PCIe [x16] x 2
(one PCIe [x16] only supports PCIe [x4])
Power Supply Type
Standard 24-pin ATX + 8-pin 12V
CMOS Battery
RTC battery socket x 1
BIOS
Yes
Dimension
12” x 9.6” (305mm x 244mm)
Gross Weight
1.54 lb. (0.7Kg)
Operating Temperature
32°F ~ 140°F (0°C ~ 60°C)
Storage Temperature
-40°F ~ 176°F (-40°C ~ 80°C)
Operating Humidity
0% ~ 90% relative humidity, non-condensing
ECB-980A DISPLAY
LCD
eDP x 1
Display Interface
Display Port x 2
HDMI x 1
HDMI x 1
ECB-980A I/O
Storage
SATA x 2
M.2 2280 M-Key x 2 (PCIe Gen 4 [x4] for NVMe)
M.2 2280 M-Key x 2 (PCIe Gen 4 [x4] for NVMe)
Serial Port
4-wire UART x 2
USB
USB 3.2 x 2 (20Gbps, up to Gen 2 x 2 support)
USB 3.2 x 1 (10Gbps, up to Gen 2 x 1 support)
USB 3.2 x 2 (5Gbps, up to Gen 1 x 1 support)
USB 2.0 x 8
USB 3.2 x 1 (10Gbps, up to Gen 2 x 1 support)
USB 3.2 x 2 (5Gbps, up to Gen 1 x 1 support)
USB 2.0 x 8
Audio
Audio Jack, supports Line-in, Line-out, Microphone
GPIO
12 bit
Switch/Button
Power Button x 1 / Reset Button x 1
Debug LED
7-Segment Display LED x 2 (80 Port Post Code Indicator)
I2C
x 1
Expansion
SMBus, LPC/eSPI slot
