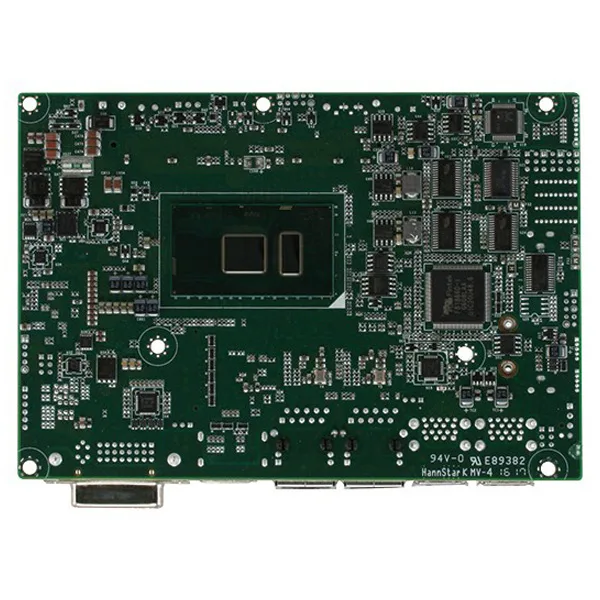

GENE-KBU6 - Image 2
GENE-KBU6 - Image 3

GENE-KBU6

GENE-KBU6 – Embedded Single Board Computers | A perfect appliance for Machine Vision applications

  • DVI, 18/24-bit Dual-Channel LVDS
  • SATA 6.0 Gb/s x 1 & mSATA (Share with Half-size Mini-Card and Selective by BIOS)
  • Supports 8-bit Digital I/O, USB 2.0 x 2 , USB 3.2 Gen 1 x 4
  • Mini-Card Slot x 1 (Full size), TPM, SIM
  • Wide DC Support 9~36V, +12V Only (Optional)
  • BIO Connector for Daughter Board
  • Solder Design for System Assembly and Thermal

Letölthető adatlap

Cikkszám: AAEON GENE-KBU6 Kategóriák: , , , Címkék: , , ,

Leírás

GENE-KBU6

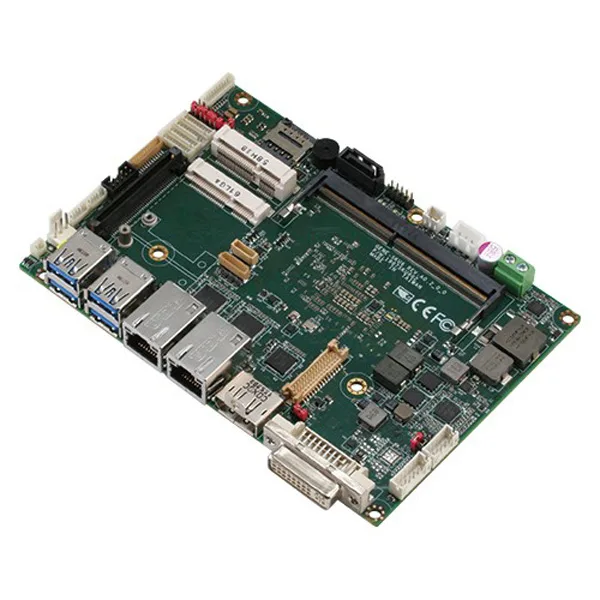

An expandable 3.5” SubCompact Board with Intel® 7th Generation U Core™ i7/i5/i3/Celeron® Processor SoC

All versions of the GENE-KBU6 are designed with a fanless heatsink that facilitate heat mitigation and airflow, ensuring product quality and longevity. This 3.5" single board is specifically designed for applications such as Robotics and Industrial Automation, and is powered by the latest Intel Kabylake processor, facilitating faster processing time and better image resolution. Field tests have shown that the GENE-KBU6 surpasses the Skylake model by 20%, and provides a 10% improvement in graphics power. It also supports 4K display, DDR4 SO-DIMM and EtherCAT, making it a perfect appliance for Machine Vision applications.

The GENE-KBU6 features a unique BIO interface built for speedy customization, enabling flexible PoE expansion options, impeccably suited for any industrial or embedded computing applications.

Applications

  • Machine Vision
  • Industrial Automation
  • Robotics
