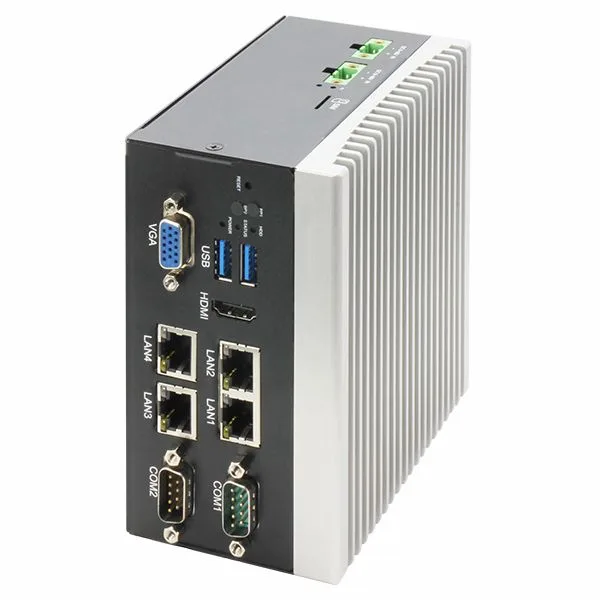

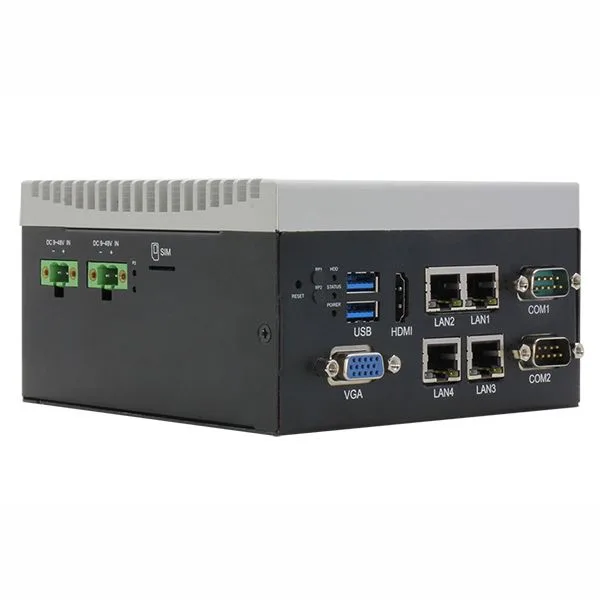

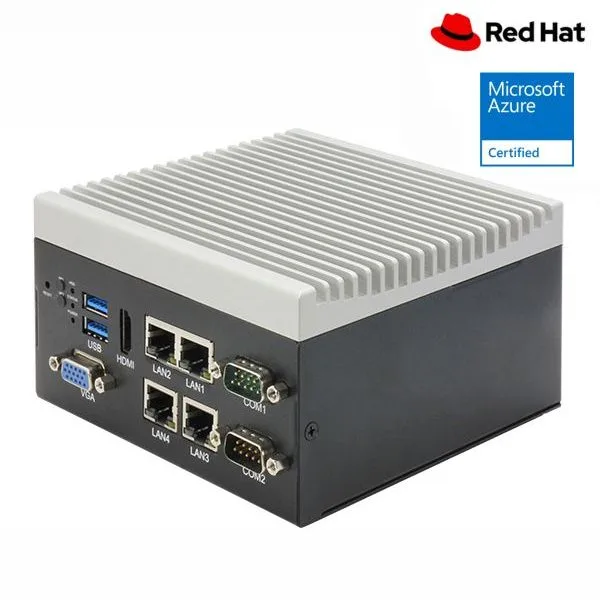

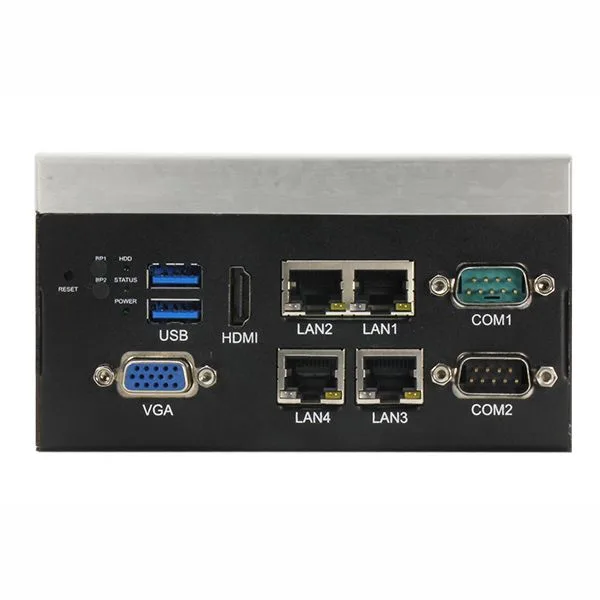

ICS-6280

DIN Rail Industrial-Grade Network Appliance with Intel Atom® Processor X Series

  • Intel Atom® Processor X Series, Intel® Pentium®/Celeron® N and J Series Processor, 2~4 cores
  • 10/100/1000Base-TX Ethernet x 4
  • Supports up to 2 Pairs LAN Bypass (Optional)
  • 260-pin DDR4 3200MT/s SODIMM with IBECC support x 1
  • Mini Card Socket x 1, Micro SIM Socket x 1
  • 9~48Vdc power redundancy input with Terminal Block x 2
  • 2.5” SATA SSD x 1
  • COM x 2 (COM 2 with isolation) with ESD Protection
  • HDMI x 1, USB 3.2 x 2, VGA x 1
  • Wide-Temp -40°C ~ 75°C Fanless Solution

Letölthető adatlap

Cikkszám: AAEON ICS-6280 Kategóriák: , , Címkék: , ,

Leírás

ICS-6280

The ICS-6280 Industrial-Grade Network Appliance is built to provide secure networks in the toughest industrial environments. Powered by Intel® Atom™ x6000 series processors (formerly Elkhart Lake), the ICS-6280 provides a substantial performance increase over previous generations, while also being equipped with application-specific benefits such as remote device management technology for Industrial IoT networks.



Along with a wide operating temperature (-40°C ~ 75°C) and wide voltage support (9Vdc ~ 48Vdc), the ICS-6280 contains a dense I/O supporting Wi-Fi and cellular networks. The ICS-6280 also offers added security features such as NGFW, UTM, along with hardware-based features such as an isolated COM port and redundant power capabilities to provide consistent, secure, and reliable network solutions.
tio_220830_0udb2y

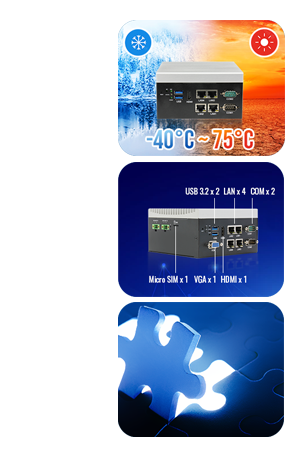

Built for Rugged, Industrial Environments

The ICS-6280 contains key industrial characteristics, including a rugged design with wide operating temperature (-40°C ~ 75°C) and wide voltage support (9Vdc ~ 48Vdc). The ICS-6280 is also armed with redundant power capabilities, ensuring continuity of operation even in the event of power supply disruptions.

Dedicated I/O for Stable Connectivity

Designed to deliver reliable and flexible network structures for industrial environments, the ICS-6280 has a dedicated I/O offering reliable connectivity via LAN Bypass and wireless network support, including expansion options to facilitate Wi-Fi and cellular network connections.

Flexible, Reliable, and Easily Integrated

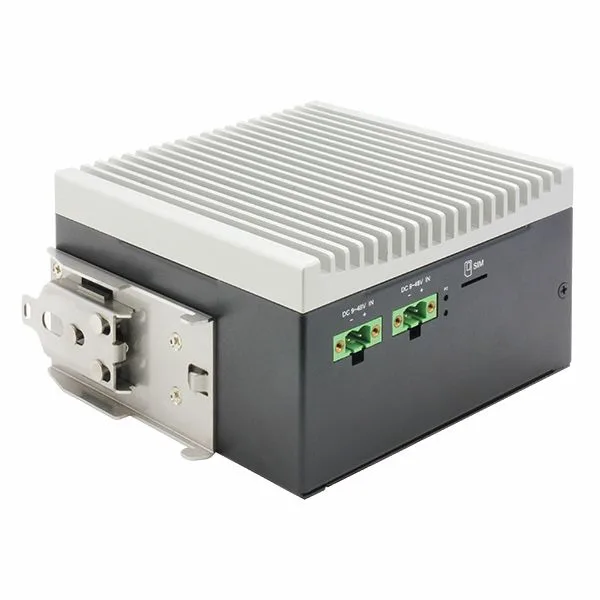

Tailoring modern network security solutions for deployment in the energy, oil and gas industries, the ICS-6280 contains physical security features such as an isolated COM port, alongside NGFW, redundant power supply, and UTM support. Meanwhile, a DIN rail mount enables deployment in secure machine cabinets for easy integration with existing systems.

Applications

ti2_230518_f3950m

Cybersecurity

The ICS-6280’s dedicated I/O featuring 2 pairs of LAN Bypass support guarantees connective integrity. It also boasts hardware-based cryptography via onboard Intel® Platform Trust Technology to protect firmware.

ti2_230518_3hx1bf

Industry 4.0

With a redundant 9Vdc~48Vdc power input range and ESD-protected isolated COM port, the ICS-6280 offers 24/7operation, providing a convergent solution covering both OT and IT systems for Industry 4.0 applications.

ti2_230518_vvgf4k

Smart Infrastructure

With DIN rail and wall mounting kits, ICS-6280 is easily deployed in machine cabinets for existing system integration. This is beneficial for heavy industries such as energy, oil and gas, chemical refinery and transportation.

ti2_230518_mlr73z

SCADA Control System

A wealth of connectors paired with wireless network support enables time-synchronized data acquisition, monitoring, and reporting for SCADA functionality. Additionally, the ICS-6280’s virtualization capability facilitates more agile computing.

További információkért és ajánlatért az AAEON ICS-6280 terékünkről keressen minket bizalommal! Ipari jelőléstechnikai termékeinkért tekintse meg testvéroldalunkat! Tartós, megbítható és extrém körülmények közt is stabil teljesítményt nyújtó ipari eszközök széles választékával várjuk
