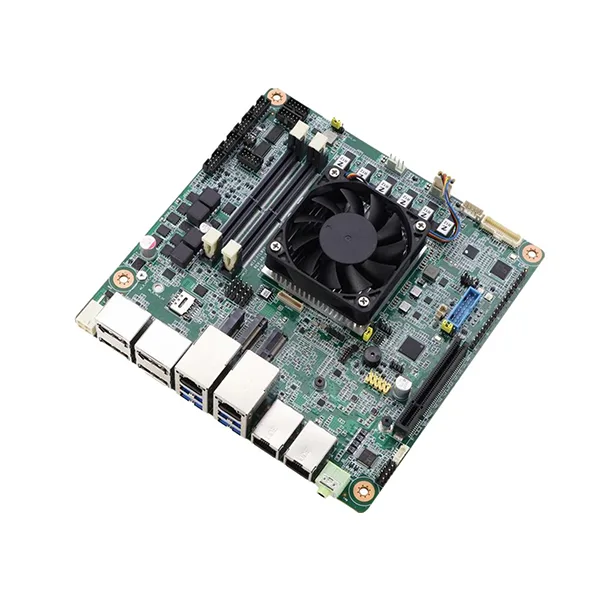

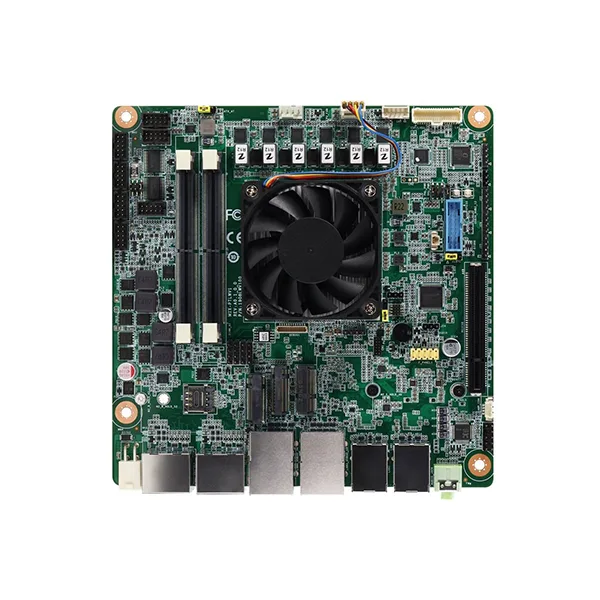

MIX-PTLWV1
Mini-ITX with Intel® Core™ Ultra Series 3 Processors, 12V~24V DC-in Power
MIX-PTLWV1 SYSTEM
processor
Intel® Core™ Ultra Series 3 Processors, PTL-H404/PTL-H484
processors, TDP
15~25W
15~25W
Chipset
—
Memory
DDR5 C/SO-DIMM x 2, 1DPC, Max. 128GB
H404: 6400 MHz / H484: 7200 MHz
H404: 6400 MHz / H484: 7200 MHz
I/O Chipset
Nuvoton NCT6126D
Ethernet
Intel® Ethernet Controller I226-LM, 2.5GbE x 1
Intel® Ethernet Controller I226-V, 2.5GbE x 1
Intel® Ethernet Controller E610-XAT2, 10GbE x 2 (SKU 4L)
Intel® Ethernet Controller I226-V, 2.5GbE x 1
Intel® Ethernet Controller E610-XAT2, 10GbE x 2 (SKU 4L)
Audio
Realtek® ALC897
TPM
Infineon SLB9672 TPM2.0 onboard
Expansion Slot
PCIe Gen 5 [x8] x 1 (open edge) (BOM optional on H484)
M.2 2230 E-Key x 1 (PCIe 4.0 [x1]/USB 2.0/CNVi)
M.2 3042/3052 B-Key x 1 (PCIe [x1]/USB 3.2 Gen 1) with Nano SIM Socket
(Default 3052 by BOM optional)
M.2 2230 E-Key x 1 (PCIe 4.0 [x1]/USB 2.0/CNVi)
M.2 3042/3052 B-Key x 1 (PCIe [x1]/USB 3.2 Gen 1) with Nano SIM Socket
(Default 3052 by BOM optional)
BIOS
256Mbit Flash ROM, AMI BIOS
H/W Monitor
Temperature Monitor on CPU/System, Voltage Monitor on
Vcore/5V/3.3V/12V,
Fan Monitor on Chassis
Fan Monitor on Chassis
Watchdog Timer
1~255 steps by software program
Smart Fan Control
CPU Fan, SYS Fan
Wake On LAN/ PXE
Yes (WOL/PXE)
Power State
S4, S5
MIX-PTLWV1 GRAPHICS
Graphics Chipset
Intel® Xe LPG Graphics
Graphics Multi Display
Quad Display
VGA
—
DVI
—
HDMI
—
DisplayPort
DP1.4, up to 4096 x 2160 @60Hz
LVDS
Up to 1920 x 1080 @60Hz, Dual Channel 18/24 bit,
co-layout eDP (default LVDS)
co-layout eDP (default LVDS)
eDP
eDP1.4, up to 4096 x 2160 @120Hz, 4ch, co-layout LVDS by BOM
optional
Backlight Control
—
MIX-PTLWV1 ENVIRONMENTAL & POWER & ME
Battery
Lithium battery
Power Requirement
12V ~ 24V DC-in (±5%)
Operating Temperature
32°F ~ 140°F (0°C ~ 60°C) (Operational humidity: 60°C @90% RH
Non-
Condensing)
Condensing)
Storage Temperature
-40°F ~ 185°F (-40°C ~ 85°C)
Certification
CE & FCC (Class A)
Form Factor
Mini-ITX: 6.7” x 6.7” (170mm x 170mm)
Weight
TBD
MTBF (hours)
—
REAR I/O PORTS
USB
USB 3.2 Gen 1 x 4 ports (5Gbps)
Display I/O
DP 1.4 x 4
Audio I/O
Line-out x 1
LAN I/O
SKU 4L: RJ-45 LAN x 4 (10GbE x 2 + 2.5GbE x 2),
SKU 2L: RJ-45 LAN x 2 (2.5GbE x 2)
SKU 2L: RJ-45 LAN x 2 (2.5GbE x 2)
Serial Port
—
PS/2 Port
—
Others
2x2-Pin Connector x 1
INTERNAL I/O CONNECTORS
Storage
M.2-1A 2280 M-Key x 1 (PCIe [x4]; Gen 4, NVMe)
USB
USB 3.2 Gen 1 x 1 (via 2 x 10-pin, 2.0mm header), supports
additional 2 USB
ports interface
ports interface
Display I/O
40-pin LVDS/eDP Connector x 1
Audio I/O
1x4-Pin header x 1, supports 2W/4ohm
Serial Port
RS-232/422/485 Box Header x 1(5V/12V/RI optional), RS-232 Box
Header x 5
PS/2 Port
—
Parallel Port
—
DIO
8-bit programmable (4-in/4-out) x 1
Fan
Chassis Fan connectors (4-pin) x 1, CPU Fan connectors (4-pin)
x 1
Power
—
Others
Clear CMOS Jumper x 1
Front Panel Header x 1
ATX/AT Mode Select x 1
ME Disable x 1
eDP/LVDS Tcon IC Voltage Select x 1
eDP/LVDS Panel Backlight Voltage Select x 1 (3.3V/5V/12V)
LVDS Inverter x 1
Front Panel Header x 1
ATX/AT Mode Select x 1
ME Disable x 1
eDP/LVDS Tcon IC Voltage Select x 1
eDP/LVDS Panel Backlight Voltage Select x 1 (3.3V/5V/12V)
LVDS Inverter x 1
OS
OS support
Windows® 11 64-bit, Linux Ubuntu 24.04 / Kernel 6.8
