PICO-MTU4-SEMI

PICO-SEMI with Intel® Core™ Ultra 5 Processors

  • Intel® Core™ Ultra 5 Processor SoC
  • Onboard LPDDR5, up to 32GB
  • 2.5GbE Intel® Ethernet Controller I226 + 1GbE Intel® Ethernet Connection I219
  • HDMI 1.4
  • M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA)
  • M.2 2230 E-Key x 1 (PCIe 4.0 [x1] + USB 2.0)
  • USB 3.2 Gen 2 x 2
  • RS-232/422/485 x 2 (Optional)
  • TPM, GPIO 4-bit (Optional)
Cikkszám: AAEON PICO-MTU4-SEMI Kategóriák: , , , , , , , , , Címkék: , , , , , , , , ,

Leírás

PICO-MTU4 SEMI

PICO-SEMI with Intel® Core™ Ultra 5 Processors

PICO-MTU4-SEMI Smaller

The Smaller, Fanless, More Efficient AI Mini PC

PICO-MTU4 SEMI Measuring 108mm x 95mm x 43mm, weighing in at just 600g, and with the added benefit of being AAEON’s first Intel® Core™-powered PICO-SEMI system capable of fanless operation, the PICO-MTU4-SEMI is easily deployed as part of larger equipment setups or integrated as the central unit of smart robotics solutions such as AGVs, AMRs, and drones requiring minimal maintenance.

img_250804050556_42j8xD

A More Efficient Multitasking Platform

With a dedicated NPU built into the PC’s Intel® Core™ Ultra foundation, the PICO-MTU4-SEMI is able to offload inferencing tasks from its CPU and GPU, granting users a lower total system power draw. This also frees up compute resources to more efficiently handle tasks such as data preprocessing, peripheral device control, and multitasking for lower overall operational latency. The PICO-MTU4-SEMI is also ErP-compliant, consuming less than 0.5W in S5 mode for operational longevity.

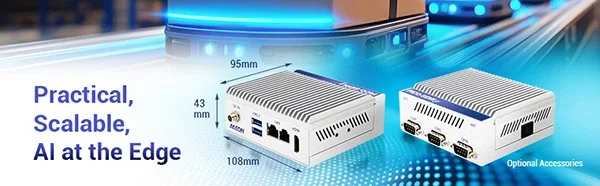

PICO-MTU4-SEMI Scalable

Practical, Scalable, AI at the Edge

With a host of on-device interfaces including dual LAN ports with IEEE 1588 Precision Time Protocol support, dual USB 3.2 Gen 2, and dual COM ports for RS-232/422/485, the PICO-MTU4 SEMI is the ideal engine through which to channel the integrated AI functionality of the Intel® Core™ Ultra platform for low power, sustained workloads. The system also offers expansion slots for both wireless and for storage modules via M.2 E and M-Keys, respectively, making it the ideal engine through which to channel the integrated AI functionality of the Intel® Core™ Ultra platform for low power, sustained workloads.
