AAEON Ipari Megoldások » PICO-WHU4-SEMI

PICO-WHU4-SEMI
PICO-WHU4-SEMI - Image 2

PICO-WHU4-SEMI

PICO-SEMI Embedded with 8th Generation Intel® Core™ i7/i5/i3/Celeron® U-Series Processor SoC

  • 8th Intel® Core™ i7/i5/i3/Celeron Processor SoC
  • Non-ECC DDR4 SODIMM Slot x 1, up to 32GB
  • Dual HDMI ports (HDMI 1.4b), GbE x 2
  • SATA 6.0 Gb/s x 1, support 2.5″ SSD
  • Full size mSATA/mPCIe x 1 (Select by BIOS), M.2 2230 (E key) x 1
  • USB 3.2 Gen 2 x 2, USB 2.0 x 2
  • RS-232/422/485 x 2 (Optional)
  • Lockable DC 12V

Letölthető adatlap

Cikkszám: AAEON PICO-WHU4-SEMI Kategóriák: , , , Címkék: , , ,

Leírás

PICO-WHU4-SEMI

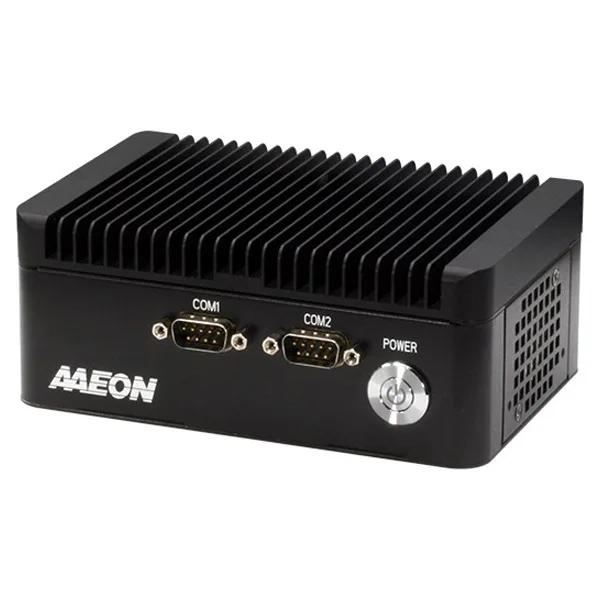

The PICO-WHU4-SEMI compact embedded system packages the popular PICO-WHU4 industrial PICO-ITX board in a barebones system that’s easy to assemble and deploy. Powered by the 8th Generation Intel® Core™ i3/i5/i7 and Celeron® processors (formerly Whiskey Lake) and supporting up to 32 GB of RAM, the PICO-WHU4-SEMI is designed to get edge computing and embedded applications up and running quickly..

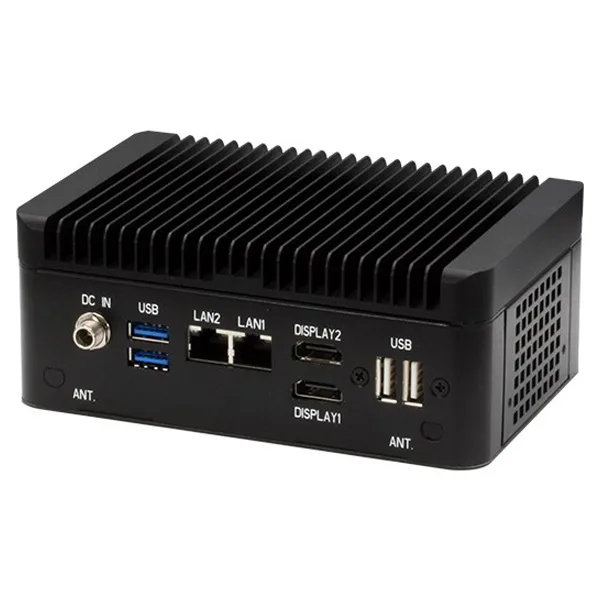

Storage is supported with SATA III (6.0 Gb/s) for 2.5” SSDs and a full-size mPCIe/mSATA expansion slot (functionality selected in BIOS). In addition to the mPCIe slot, the PICO-WHU4-SEMI also features an M.2 2230 E-Key slot. I/O loadout includes two USB3.2 Gen 2 ports, two USB2.0 ports, two Gigabit Ethernet LAN ports, two HDMI out ports and two COM ports (optional).

The PICO-WHU4-SEMI is perfect for embedded edge applications, and supports AI accelerator (NPU/VPU) cards, making it the perfect compact solution for deploying AI at the Edge quickly.

További információkért és ajánlatért az AAEON PICO-WHU4-SEMI terékünkről keressen minket bizalommal! Ipari jelőléstechnikai termékeinkért tekintse meg testvéroldalunkat! Tartós, megbítható és extrém körülmények közt is stabil teljesítményt nyújtó ipari eszközök széles választékával várjuk
