PICO-WHU4

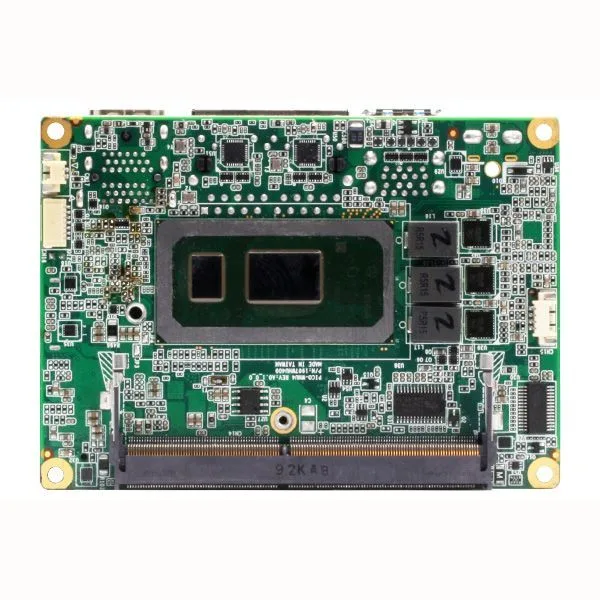

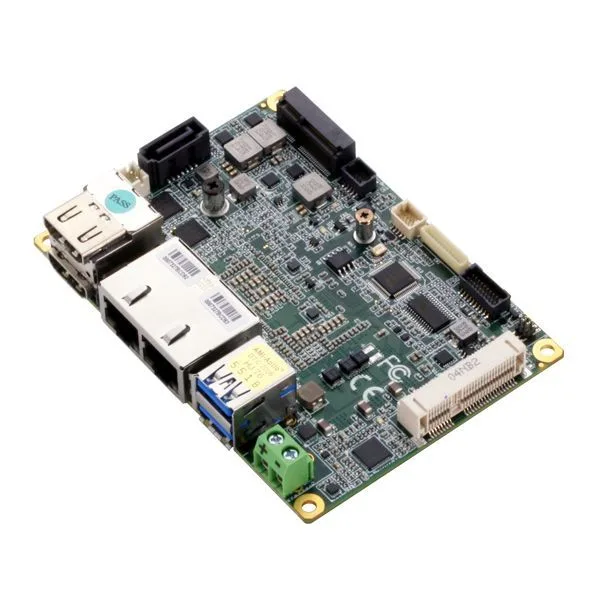

Pico-ITX Board with 8th Generation Intel® Core™ i7/i5/i3/Celeron® U-Series Processor SoC

  • 8th Gen Intel® Core™ i7/i5/i3/Celeron Processor SoC
  • Non-ECC DDR4 SODIMM Slot x 1, up to 32GB
  • Dual HDMI ports (HDMI 1.4b)
  • GbE x 2, SATA 6.0 Gb/s x 1, GPIO x 4
  • USB 3.2 Gen 2 x 2 (Rear), USB 2.0 x 2 Pin header, RS-232/422/485 x 2
  • Full size mSATA/mPCIe x 1 (Select by BIOS), M.2 2230 (E key) x 1
  • 12V Only (Terminal block and DC barrel co-design)

Letölthető adatlap

Cikkszám: AAEON PICO-WHU4 Kategóriák: , , , Címkék: , , ,

Leírás

PICO-WHU4

PICO-WHU4 is a compact PICO-ITX board featuring 8th Generation Intel® Core™ Processors designed for AI and Edge Computing.

The PICO-WHU4 from AAEON is the latest in compact embedded computing from AAEON. Powered by 8th Generation Intel® Core™ i3/i5/i7 and Celeron® processors (formerly Whiskey Lake) and supporting up to 32 GB of RAM, this compact PICO-ITX board is capable of powering a range of AI and Edge Computing applications from Smart Retail to Smart City. PICO-WHU4 offers I/O features to allow flexibility for easy integration into existing systems and projects.

Powered by Intel®

AAEON’s PICO-TGU4-SEMI gives an extremely high CPU performance through the 11th Gen Intel® Core™ i7/i5/i3/Celeron Processor on the compact PICO-ITX form factor, allowing for elite speed when running AI edge applications. With CPU turbo mode on enabling advanced computing performance, the PICO-TGU4-SEMI suits AI Edge deployment in drones, robotics, or factory applications. The PICO-TGU4-SEMI also contains dual LAN ports, with one Intel i225 2.5 Gbps port for enhanced-speed LAN connectivity, along with an Intel i219M port able to support Intel vPro, enabling remote system monitoring.

Compact Embedded Board

The PICO-ITX form factor is perfect for projects which require high performance from a small board. PICO-WHU4 also offers wide operating temperature range WITAS II (-40~85C) so it can work almost anywhere.

Built for AI@Edge

PICO-WHU4 is built to power AI and edge computing applications, with support for a range of frameworks. PICO-WHU4 also supports expansion cards like AI Core X with Intel® Movidius® Myriad™ X for even more AI@Edge processing power.

I/O Flexibility

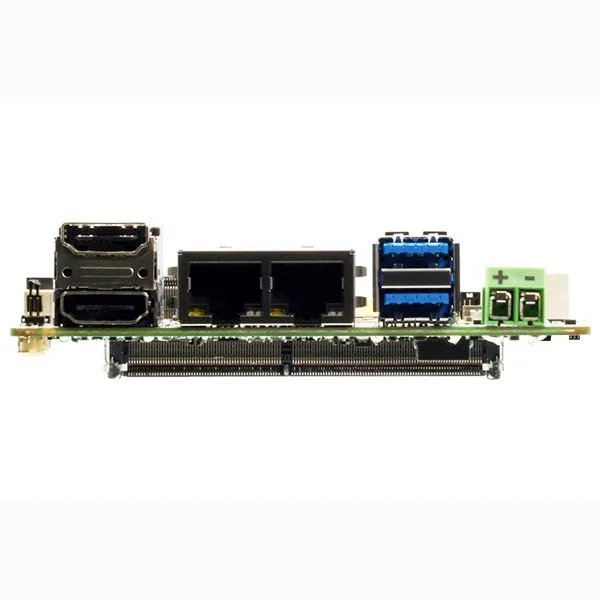

PICO-WHU4 features a host of I/O ports perfect for embedded operations or powering AI@Edge applications, including four USB ports (two USB 3.2 Gen 2 ports and two USB 2.0 headers), two Ethernet ports, and two COM headers.

Turn Key System

AAEON offers customers the ability to customize their PICO-WHU4, including the turn-key PICO-WHU4-SEMI embedded system, allowing you to get your project up and running quickly.

További információkért és ajánlatért az AAEON PICO-WHU4 terékünkről keressen minket bizalommal! Ipari jelőléstechnikai termékeinkért tekintse meg testvéroldalunkat! Tartós, megbítható és extrém körülmények közt is stabil teljesítményt nyújtó ipari eszközök széles választékával várjuk
