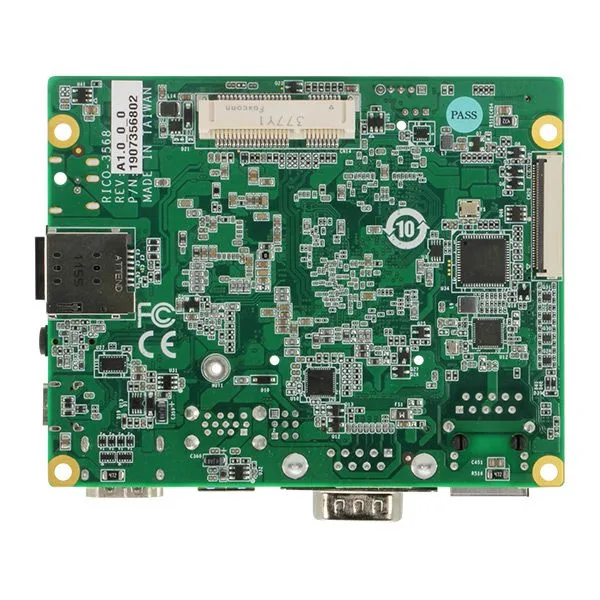

RICO-3568
Pico-ITX Fanless Board with NXP i.MX 8M Plus
Designed to appeal to customers seeking a robust, industrial-grade solution for markets such as automation, digital signage, and edge computing, the RICO-3568 provides a wide range of interfaces and expansion options to leverage the high-performance, low-power capabilities of the Rockchip RK3568 platform. The RICO-3568 features up to 8GB of onboard LPDDR4, paired with 16GB of eMMC storage, a Micro-SD card slot, and a mini-PCIe slot that supports mSATA as storage.
RICO-3568 SYSTEM
Form Factor
Pico-ITX Plus (100mm x 80mm)
CPU
Rockchip RK3568
Quad-Core Arm® Cortex®-A55 Processor
NPU: 0.8 TOPS
Quad-Core Arm® Cortex®-A55 Processor
NPU: 0.8 TOPS
GPU
Arm® Mali™-G52 GPU
Graphics
Video Encode: 1080P @60fps H.264/H.265
Video Decode: 4K@60fps H.264/H.265/AV1 4KP60 AVS2/VP9 1080P MPEG1/ VP8
Video Decode: 4K@60fps H.264/H.265/AV1 4KP60 AVS2/VP9 1080P MPEG1/ VP8
Memory Capacity
Onboard LPDDR4 2GB/4GB/8GB (Optional)
Storage/SSD
16GB eMMC and Micro-SD card Full-size mini-PCIe slot x 1 (mSATA
/ USB)
Operating System
Android™ 12
Debian® 10
Debian® 10
Kernel
Kernel 4.19.219 (Android 12)
Watchdog Timer
Integrated
Power Requirement
0.96A
@12V, full load, Quad-core CPU
@12V, full load, Quad-core CPU
Power Consumption (Typical)
+12V DC input
AT: Default, ATX: Optional
AT: Default, ATX: Optional
Dimension
3.94" x 3.15" (100mm x 80mm)
Gross Weight
0.44 lb (0.2 Kg)
Operating Temperature
-4°F ~ 140°F (-20°C ~ 60°C)
Storage Temperature
-40˚F ~ 176˚F (-40˚C ~ 80˚C)
Operating Humidity
0% ~ 90% relative humidity, non-condensing
MTBF (hours)
100,000
Certification
CE/FCC
RICO-3568 DISPLAY
HDMI
HDMI 2.0, up to 4K x 2K @60Hz
eDP
eDP 1.3, up to 2560 x 1600 @60Hz
LVDS
18/24-bit LVDS
A1.0: Up to 1280 x 800 @60Hz
B1.0: Up to 1920 x 1080 @60Hz
JP2, 3.3V/5V: LVDS Power Selection
JP3, 5V/12V: Backlight Power Selection
LCD Backlight connector
A1.0: Up to 1280 x 800 @60Hz
B1.0: Up to 1920 x 1080 @60Hz
JP2, 3.3V/5V: LVDS Power Selection
JP3, 5V/12V: Backlight Power Selection
LCD Backlight connector
MIPI
For A1.0 only
Up to 2048 x 1536 @60Hz for Dual-MIPI Mode
Up to 2048 x 1536 @60Hz for Dual-MIPI Mode
RICO-3568RF FUNCTION
Wi-Fi
Onboard 802.11 a/b/g/n/ac
ANT1 for Antenna
ANT1 for Antenna
Bluetooth
Bluetooth V5.4 + EDR
I/O
Ethernet
GbE x 2
RJ-45 x 2 (Onboard x 1 + T650 Daughter Board RJ-45 Port or T650 Wide-Voltage Board RJ-45 Port)
RJ-45 x 2 (Onboard x 1 + T650 Daughter Board RJ-45 Port or T650 Wide-Voltage Board RJ-45 Port)
USB Port
USB 3.2 Gen 1 OTG (Type-C) x 1
USB 3.2 Gen 1 x 1
USB 2.0 x 2 (Type-A x 1, Pin Header with Integrated USB, I2C, 5V x 1)
USB 3.2 Gen 1 x 1
USB 2.0 x 2 (Type-A x 1, Pin Header with Integrated USB, I2C, 5V x 1)
Serial Port
RS-232/422/485 x 1
JP1, 5V/12V: RS-232/422/485 Voltage Output Selection
RS-232 / Debug port 7-pin wafer x 1
CN3: UART (Tx/Rx only), I2C, USB, Others
JP1, 5V/12V: RS-232/422/485 Voltage Output Selection
RS-232 / Debug port 7-pin wafer x 1
CN3: UART (Tx/Rx only), I2C, USB, Others
Audio
Microphone/ Earphone (3.5mm)
GPIO
GPIO x 8, 2x6 Wafer x 1
Expansion Slot
Full-size mini-PCIe slot x 1 (mSATA / USB)
Connect to Daughter board: 40-pin FPC connector x 1
Connect to Daughter board: 40-pin FPC connector x 1
SIM Slot
Nano-SIM, Push-Push type with tray
SD Socket
Micro-SD card, Push-Push type
Camera
N/A
