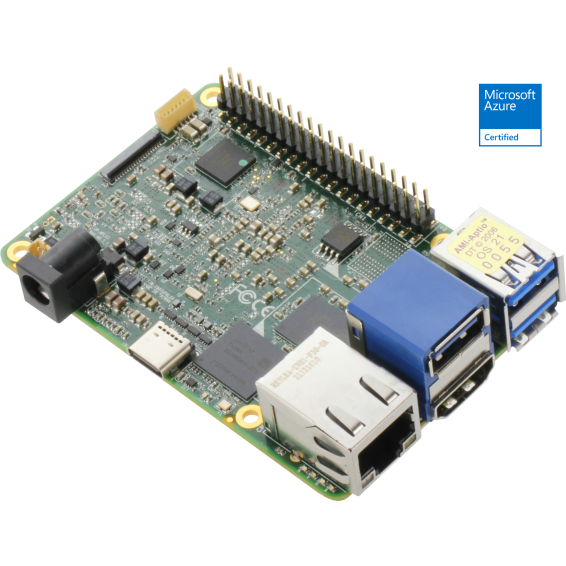

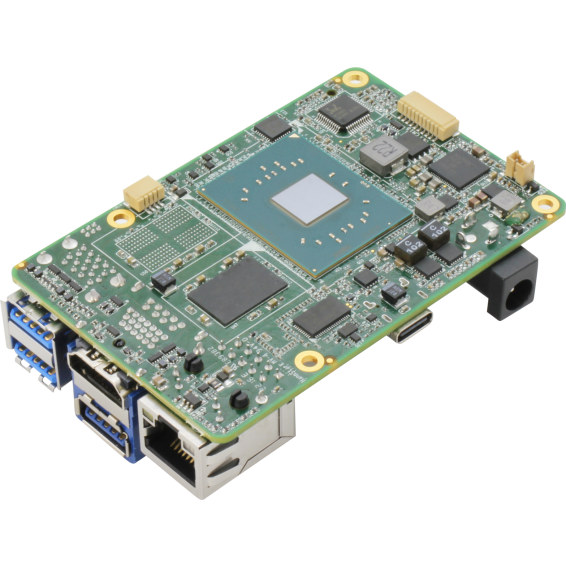

AAEON UP 4000: A Perfect Blend of Classic and Moderng

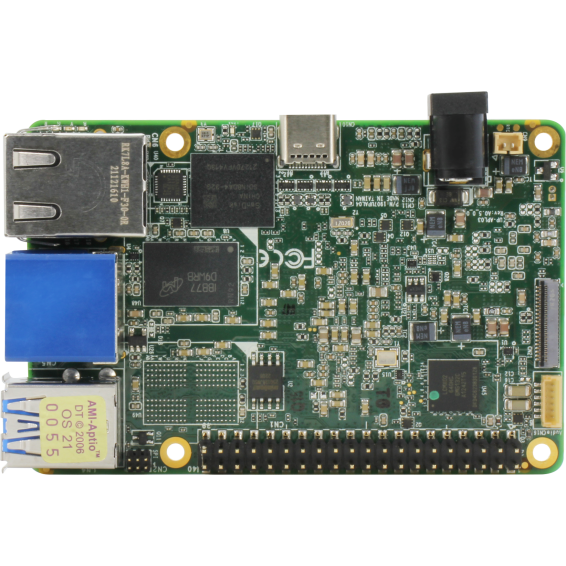

With the introduction of the UP 4000, AAEON combines classic design with modern technology. As the successor to the trailblazing UP Board, the UP 4000 retains the same form factor while offering users upgrades in processing power, I/O density, and expansion options.
Improvements and Performance
A standout feature of the UP 4000 is the 30% increase in CPU speeds. Powered by the Intel® Pentium® N4200, Celeron® N3350, and Atom™ E3950 SoC (formerly Apollo Lake), users can expect faster performance. Additionally, the 2x improvement in 3D graphics performance, courtesy of the Intel Gen 9 HD graphics package, enhances overall visuals. As a result of these upgrades, the UP 4000 offers up to 1.7 times better single-thread performance compared to the previous generation, along with 1.5 times better graphics burst performance..
New Features and Add-Ons
Despite its significant advancements in maker board technology, the UP 4000 continues the original UP Board ethos of offering fantastic value for money. Even with its affordable price, the UP 4000 includes several new features:
- 6-pin wafer supporting audio functionality
- TPM 2.0 for enhanced security
- HDMI 1.4 port for versatile display connectivity
- Direct support for mic-in and line-out utility
- USB Type-C connector with DP 1.2 support, enabling 4K @ 60Hz dual displays
Expanded I/O and Expansion Options
The UP 4000 not only maintains its compact size but also offers a denser I/O configuration with a variety of expansion options. The board keeps the same 3.37” x 2.22” (85.6mm x 56.5mm) form factor as its predecessor, while offering more flexibility:
- Three USB 3.2 Gen 1 ports
- Two USB 2.0 ports via a 10-pin wafer
- USB Type-C connector
- Optional carrier board supporting Wi-Fi, 5G, or AI modules through two M.2 Key ports
Applications and Use Cases
The UP 4000 serves as a foundation for superior solutions typically seen with the first-generation UP Board, such as digital signage, IoT devices, and industrial automation. With its compact design and competitive pricing, the UP 4000 is the successor to the UP Board, while retaining the core features that made the original iconic.
