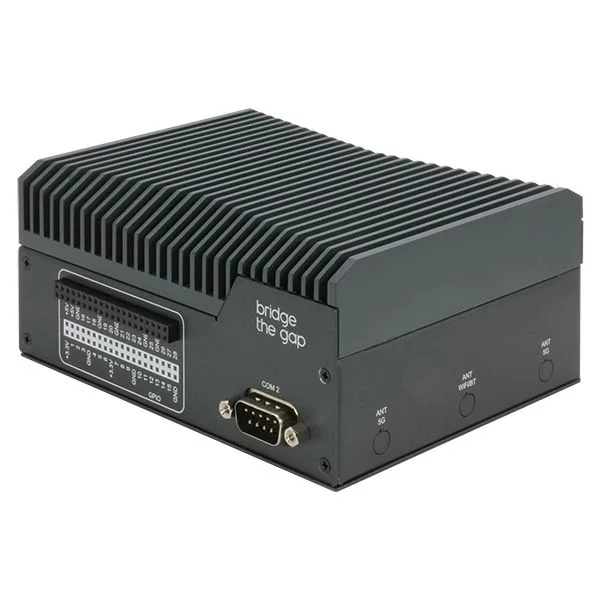

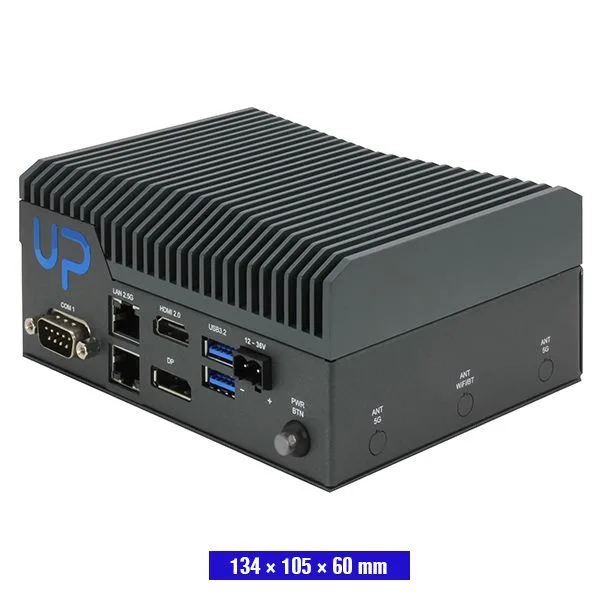

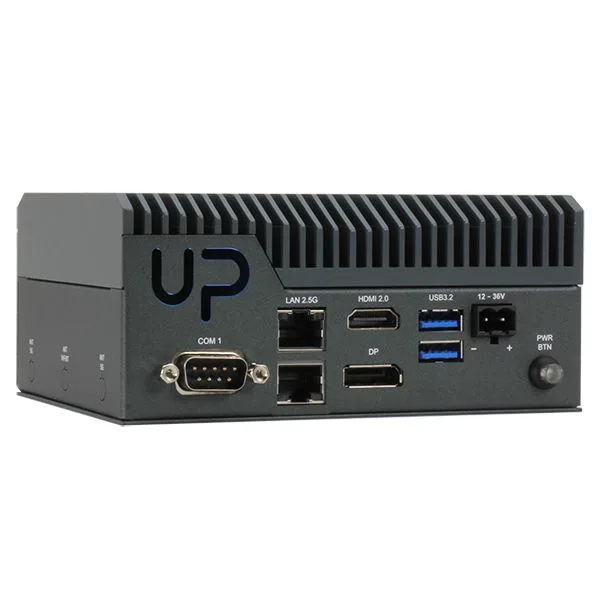

UP SQUARED PRO 710H EDGE

UP Squared Pro 710H Edge | Intel AI solution with Hailo module

  • Intel Atom® x7000 RE Series, Intel® Processor N Series, and Intel® Core™ i3-N305 Processors
  • Onboard Hailo-8™ edge AI processor
  • Onboard LPDDR5 Memory, up to 16GB
  • Onboard eMMC Storage, up to 128GB
  • 2.5GbE x 2 (Intel® I226-IT)
  • USB 3.2 (Type-A) x 2
  • 40-pin GPIO x 1
  • DP 1.2 x 1/HDMI 2.0b x 1
  • RS-232/422/485 x 2
  • M.2 2230 E-Key/M.2 2280 M-Key (Optional: M.2 3052 B-Key x 1)
  • Onboard TPM 2.0
  • 12V~36V DC-in with Phoenix Connector

Letölthető adatlap

Leírás

UP Squared Pro 710H Edge | Intel AI solution with Hailo module Intel Atom® x7000 RE Series, Intel® Pro

The UP Squared Pro 710H Edge combines the edge AI functionality of the Hailo-8™ edge AI processor with the power-efficient operation of the Intel® Processor N-series, providing a streamlined deployment platform for a range of versatile market solutions. Optimized connectivity options, multiple display outputs, and wireless expansion offer multifaceted interface configurations with which to curate project-driven applications, while purpose-built drivers grant access to Hailo’s software suites for Ubuntu and Windows to facilitate development, all in one place.

Integrated AI Acceleration

1_1

With its integrated Hailo-8™ edge AI processor, the UP Squared Pro 710H Edge provides a shortcut to machine learning frameworks and pre-trained models through a comprehensive AI software suite. Coupled with a choice of either the Intel® Core™ i3-N305 or Intel® Processor N97 CPU, the UP Squared Pro 710H Edge maintains exceptional power-efficiency, even when handling complex tasks such as AI inferencing, data analytics, and multimedia processing.

Peripheral Synchronization

2_1

With its integrated Hailo-8™ edge AI processor, the UP Squared Pro 710H Edge provides a shortcut to machine learning frameworks and pre-trained models through a comprehensive AI software suite. Coupled with a choice of either the Intel® Core™ i3-N305 or Intel® Processor N97 CPU, the UP Squared Pro 710H Edge maintains exceptional power-efficiency, even when handling complex tasks such as AI inferencing, data analytics, and multimedia processing.

Streamlined Expansion

3

With its integrated Hailo-8™ edge AI processor, the UP Squared Pro 710H Edge provides a shortcut to machine learning frameworks and pre-trained models through a comprehensive AI software suite. Coupled with a choice of either the Intel® Core™ i3-N305 or Intel® Processor N97 CPU, the UP Squared Pro 710H Edge maintains exceptional power-efficiency, even when handling complex tasks such as AI inferencing, data analytics, and multimedia processing.
