UP SQUARED V2

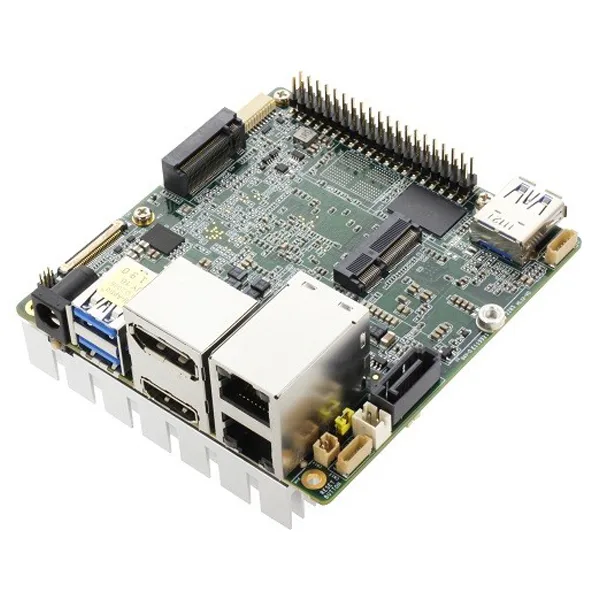

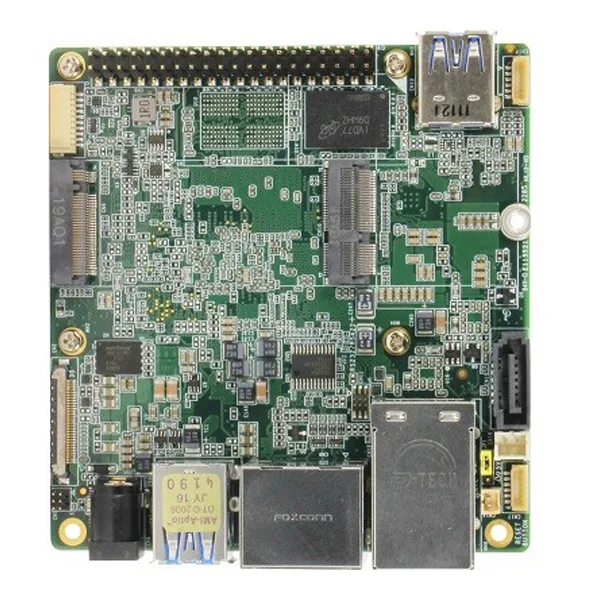

UP Squared V2 Developer Board with Intel® Pentium® Celeron® Processor SoC

  • Intel® Pentium® Celeron® Processor SoC
  • Onboard LPDDR4 Memory up to 16GB
  • Onboard eMMC Storage up to 64GB
  • Gb Ethernet (full speed) RJ-45 x 2
  • USB 3.2 Type A x 3
  • 40 pin GPIO x 1
  • DP 1.2 / HDMI 1.4b / eDP 1.3
  • RS232/422 pin header x 1
  • M.2 2230 E-Key x 1
  • M.2 2280 M-Key x 1
  • SATA3 x 1
  • TPM 2.0
  • 12V DC-in, 5A

Letölthető adatlap

Cikkszám: AAEON UP SQUARED V2 Kategóriák: , , Címkék: , ,

Leírás

UP SQUARED V2

gal_220913_6fgjvq

The successor to the UP Squared, which was heralded as the ‘the world’s fastest x86 pro maker board’, the UP Squared V2 introduces exceptional improvements on every element of its predecessor to become the ultimate example of what a powerful, cost-efficient maker board can be.

gal_220913_6576d0
40% More Processing Power with Elkhart Lake
Powered by the Intel® Celeron® N6210 Pentium® J6426 Processor SoC (formerly Elkhart Lake), the UP Squared V2 offers a 40% improvement in CPU performance compared to the UP Squared, along with 1.7x the single-thread performance and 1.5x the multi-thread performance. Compounding this, the UP Squared V2 is equipped with up to 16GB LPDDR4 system memory, enabling faster data processing speed to optimize AI inferencing applications.
gal_220913_2z6z1v

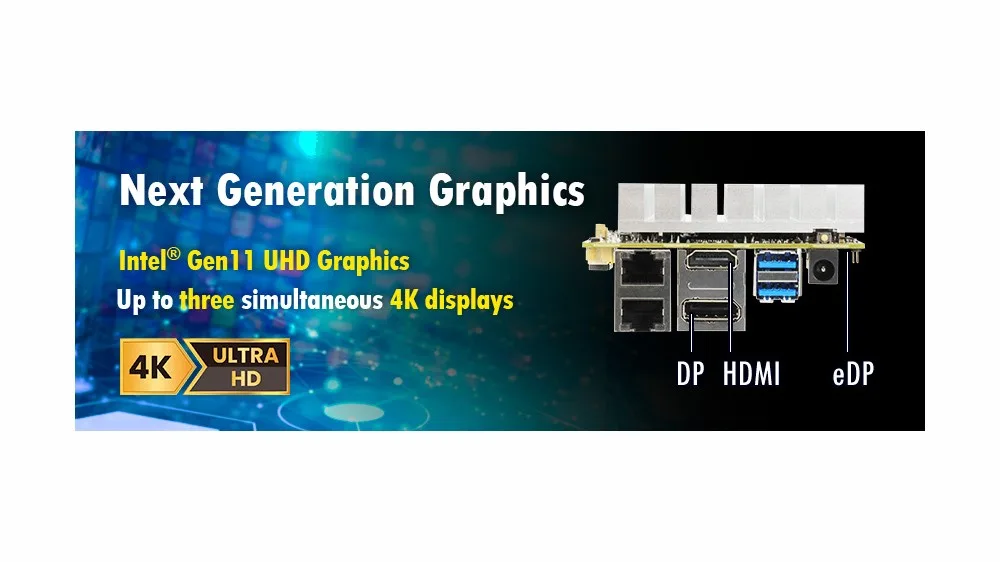

Next Generation Graphics
The UP Squared V2 also contains Intel® Gen11 UHD Graphics, which offers twice the performance of the previous generation, enabling the UP Squared V2 to support up to three simultaneous 4K displays via its HDMI 1.4, DP 1.2, and eDP 1.3 ports.
gal_220913_8zclwj

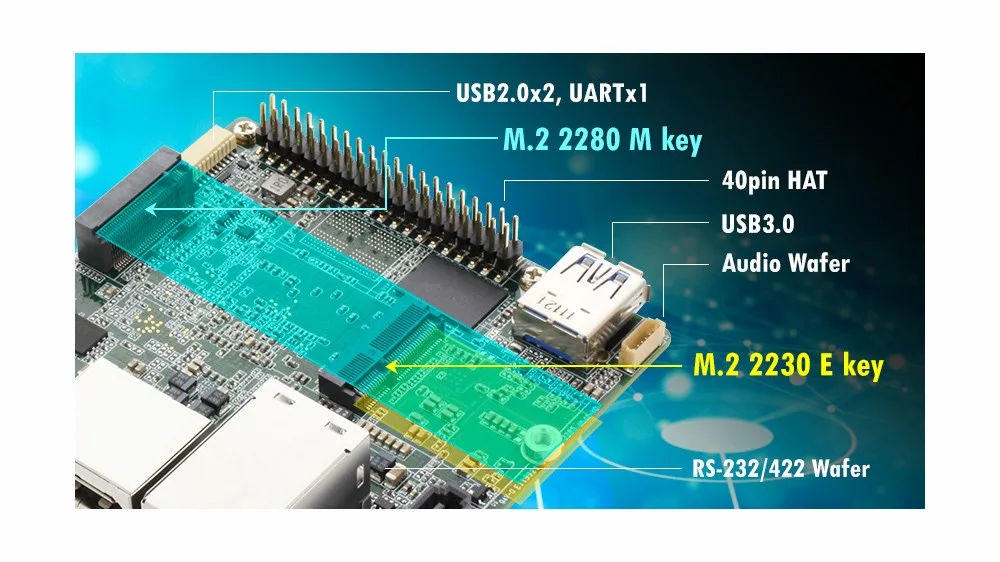

Industry-Leading Expansion
Boasting an enhanced expansion interface featuring M.2 2230 E-Key, M.2 2280 M-Key, and SATA III slots; the UP Squared V2 supports AI, PCIe, and Wi-Fi modules, as well as providing additional security via its TPM 2.0 port.

Dedicated High Definition Audio Support

Equipped with an already dense I/O, the UP Squared V2 is further tailored for user-friendly functionality, with a dedicated HD audio wafer removing the need to use the I2S on the board’s 40-pin HAT when incorporating audio features to applications.

User-Friendly Interface with Enhanced Data Transmission

While the UP Squared was only equipped with UART from 10 pin header, the UP Squared V2 contains an additional RS-232 pin header, providing a more user-friendly interface for industrial applications. The RS-232 pin also offers an increase in data transmission distance.

További információkért és ajánlatért az AAEON UP Squared i12 terékünkről keressen minket bizalommal! Ipari jelőléstechnikai termékeinkért tekintse meg testvéroldalunkat! Tartós, megbítható és extrém körülmények közt is stabil teljesítményt nyújtó ipari eszközök széles választékával várjuk
