AAEON Ipari Megoldások » FWS-7541

FWS-7541
FWS-7541 - Image 2
FWS-7541 - Image 3
FWS-7541 - Image 4
FWS-7541 - Image 5
FWS-7541 - Image 6
FWS-7541 - Image 7

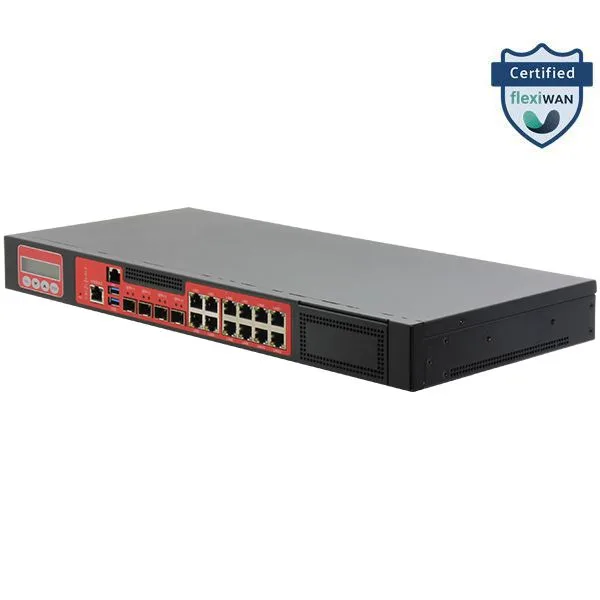

FWS-7541

1U Rackmount Network Appliance with Intel® Xeon® D-1700 Processors

  • 1U Rackmount Network Appliance
  • Intel® Xeon® D-1700 Processors
  • SOC PCH
  • DDR4 SODIMM x 2 (ECC)
  • IPMI Support (Project base)
  • Up to 10Gb SFP+ x 4 (see note 1)
  • 1GbE RJ-45 x 12
  • NIM Slot support x 1 (see note 2)
  • M.2 3052 B-Key x 1 for 4G/5G (USB 3.0 + PCIe) with SIM
  • M.2 2230 E-Key x 1 (PCIe)
  • TPM 2.0 SPI
  • 2.5” SATA HDD x 2 (default)
  • LCM with Keypad x 1
  • RJ-45 Console Port x 1, USB 3.2 Gen 1 x 2
  • 220W PSU

Letölthető adatlap

Cikkszám: AAEON FWS-7541 Kategóriák: , , Címkék: , ,

Leírás

FWS-7541

The FWS-7541 is the newest and most sophisticated addition to AAEON’s Rackmount Network Appliance range. Powered by Intel® Xeon® D-1700 Processors (formerly Ice Lake-D), it offers Intel Xeon-level performance in a more power-efficient way. A purpose-built I/O hosts a wealth of features to make the FWS-7541 the optimal low-power, high-performance network management solution. Complementing this is the system’s impressive expandability in such a compact form factor, which offers wireless module support for multiple network connection sources, providing stable, reliable uCPE and SD-WAN solutions. The FWS-7541 has now also obtained the distinction of flexiWAN certification.

Powering Network Solutions and Freezing Threats with Intel Ice Lake-D

Utilizing Intel® Xeon® D-1700 Processors, the FWS-7541 is equipped with server-class computing capabilities of 4 ~ 10 cores for high-bandwidth, power-efficient network gateway applications such as SD-WAN and uCPE. With Intel® QAT technology, the FWS-7541 also accelerates the processing, transmission, encryption, and decryption of data. This data is then protected from threats such as cold-boot, firewall penetration, and malware attacks by CPU-integrated security features including Intel® PFR, Intel® Boot Guard and Intel® TME.

Expanding Infrastructure Management via Multiple High-Speed Connection Sources

Combining powerful processing with its focused I/O and support for 64GB of high-speed system memory, the FWS-7541 is perfect for larger network infrastructure management applications as it can send and receive a higher volume of data across wider network architectures. With 12 Intel® GbE and four 10Gb SFP+ ports alongside M.2 E and B-Key slots for 5G and Wi-Fi modules, the FWS-7541 builds reliable intra-organizational structures using multiple high-speed connection sources. Furthermore, the FWS-7541 contains impressive LAN virtualization capabilities for use as a uCPE management device, with optional IPMI (Project base) support enabling remote hardware monitoring and management without connecting to the system on-site.

Guarding Enhanced Data Volumnes Utilizing TPM 2.0 and Optional IPMI (Project base)

The FWS-7541’s TPM 2.0 slot and CPU-derived security features offer businesses a multifaceted security framework. Further, the FWS-7541’s optional IPMI (Project base) support allows for the remote monitoring and control of hardware, firmware and software in cross-OS environments, without connecting to the system on-site. Taking advantage of these benefits encrypts network data to protect against unauthorized access, malware attacks and network penetration. (Learn More)

További információkért és ajánlatért az AAEON FWS-7541 terékünkről keressen minket bizalommal! Ipari jelőléstechnikai termékeinkért tekintse meg testvéroldalunkat! Tartós, megbítható és extrém körülmények közt is stabil teljesítményt nyújtó ipari eszközök széles választékával várjuk
