SRG-CM4

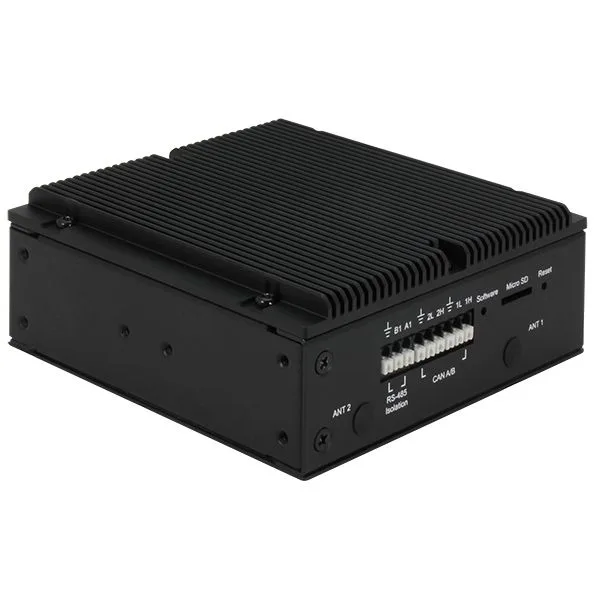

SRG-CM4 - Image 2

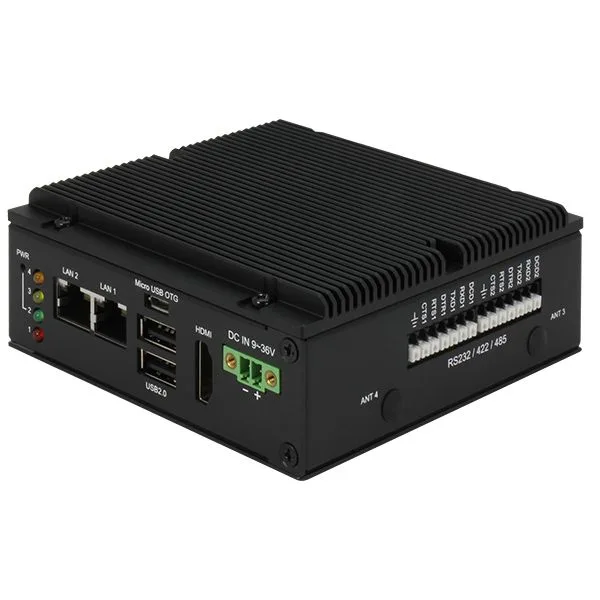

SRG-CM4

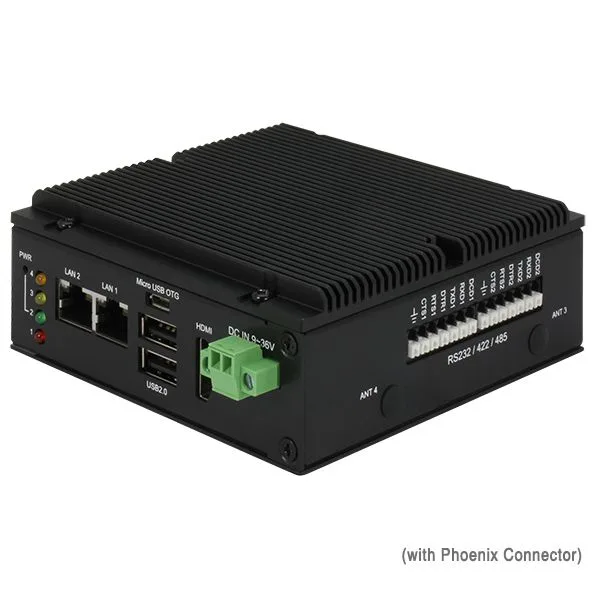

SRG-CM4

Standard RISC Gateway Board With Broadcom BCM2711 Quad-Core Cortex-A72 SoC @ 1.5GHz

  • Broadcom BCM2711 quad-core Cortex-A72 SoC @ 1.5GHz
  • On board LPDDR4, up to 8 GB, eMMC 5.1 x 1
  • HDMI 2.0 x 1
  • GbE x 2, USB 2.0 x 2
  • Full-sized mini card x 1
  • RS-232/422/485 switchable x 2, RS-485 with isolation x 1
  • CAN 2.0 A/B x 2, TPM 2.0, RTC
  • Wide Voltage DC 9V ~ 36V
  • Wide Temperature -20 °C ~ 70 °C

Letölthető adatlap

Cikkszám: AAEON SRG-CM4 Kategóriák: , , Címkék: , ,

Leírás

IoT Gateway & Protocol Expansion

Standard RISC Gateway Board With Broadcom BCM2711 Quad-Core Cortex-A72 SoC @ 1.5GHz
img_241108065151_Nh07Jg

Introduction

The SRG-CM4 brings all of the open-source flexibility of the Raspberry Pi OS and ecosystem to AAEON’s signature rugged, durable gateway design to create a truly industry-ready, modular system. Compatible with multiple Raspberry Pi Compute Module 4 SKUs and featuring an independent shell design packed with adaptable interfaces, the SRG-CM4 makes fast, modular deployment in even the harshest of environments possible.

img_241108065253_8GXxr5

Raspberry Pi OS for Rapid Development

The SRG-CM4 allows users to take advantage of the vast repository of open-source software packages, development tools, and pre-configured libraries offered by the Raspberry Pi OS, facilitating rapid development and fast time to market. It also provides ample choice of module support, compatible with Raspberry Pi Compute Module 4 SKUs with between 1GB to 8GB of RAM and 8GB to 32GB eMMC storage.

img_241108065314_sciJjF

Adaptable, Secure Communication

Channeling the capabilities of the chosen compute module is the SRG-CM4’s adaptable set of industrial interfaces. With two switchable serial ports offering RS-232/422/485, an optional isolated RS-485 signal, CAN 2.0 A/B, and two DI/DO with isolation, the SRG-CM4 holds the keys to building a variety of smart factory applications. Moreover, the SRG-CM4’s dual LAN, a mini card slot, and a HDMI display output make it a suitable solution for smart kiosk or IoT gateway use.

img_241108065349_2on5by

Environmentally Robust, Versatile Deployment

The SRG-CM4 is equipped with exceptional environmental resilience. Respective temperature and power input ranges of -20 °C to 70°C and 9V to 36V give the system excellent deployment versatility, while also maintaining vibration resistance sufficient enough to ensure reliable operation in harsh environments. Further, both wall and DIN rail mounting options allow for simple integration with existing factory infrastructure, reducing installation complexity.

További információkért és ajánlatért az AAEON SRG-CM4 terékünkről keressen minket bizalommal! Ipari jelőléstechnikai termékeinkért tekintse meg testvéroldalunkat! Tartós, megbítható és extrém körülmények közt is stabil teljesítményt nyújtó ipari eszközök széles választékával várjuk
