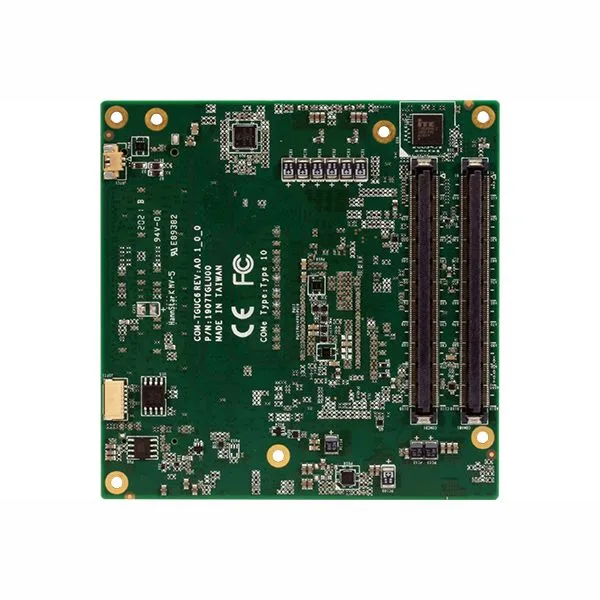

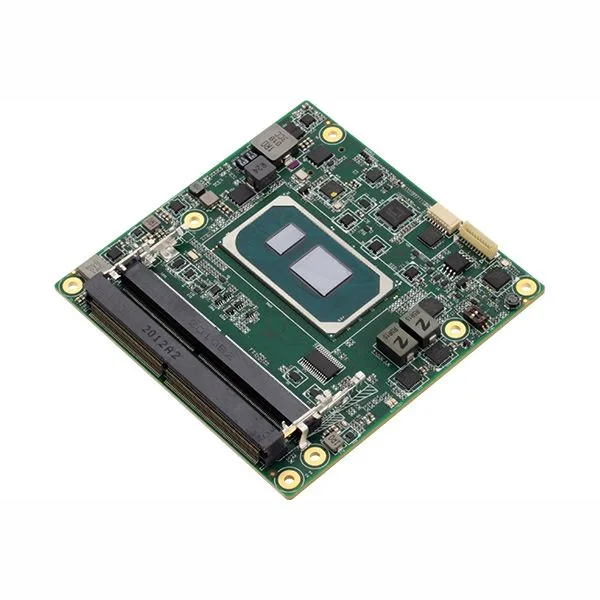

COM-TGUC6

Tiger Lake, COM Express Compact Type 6 with 11th Generation Intel® Core™ Processor Family
(formerly Tiger Lake UP3)

  • DDR4 3200MHz SODIMM x 2, up to 64GB
  • VGA x 1, LVDS x 1, DDI x 3
  • USB 2.0 x 8, USB 3.2 Gen2 x 4
  • PCIe [x1] x 5, PEG [x4] x1
  • Intel® Ethernet Controller i225/i226-LM 2.5GbE x 1
  • COM Express Type 6, 3.74″ x 3.74″ (95mm x 95mm)

Letölthető adatlap

Leírás

COM-TGUC6

Introducing the COM-TGUC6 from AAEON. Featuring the 11th Generation Intel® Core™ U processors (formerly Tiger Lake) on the compact COM Type 6 form factor, the TGUC6 delivers powerful processing capabilities along with support for the latest I/O specifications, enabling faster and more flexible connections, including 2.5 Gbps Ethernet. The TGUC6 also features display support for VGA, up to three DDI ports and LVDS/eDP, with the power to support up to four independent displays. Additionally, the COM-TGUC6 supports DDR4 modules with speeds up to 3200 MHz, and with industrial Intel Core processors, can operate in temperatures from -40°C to 85°C.
